Waveguide Load

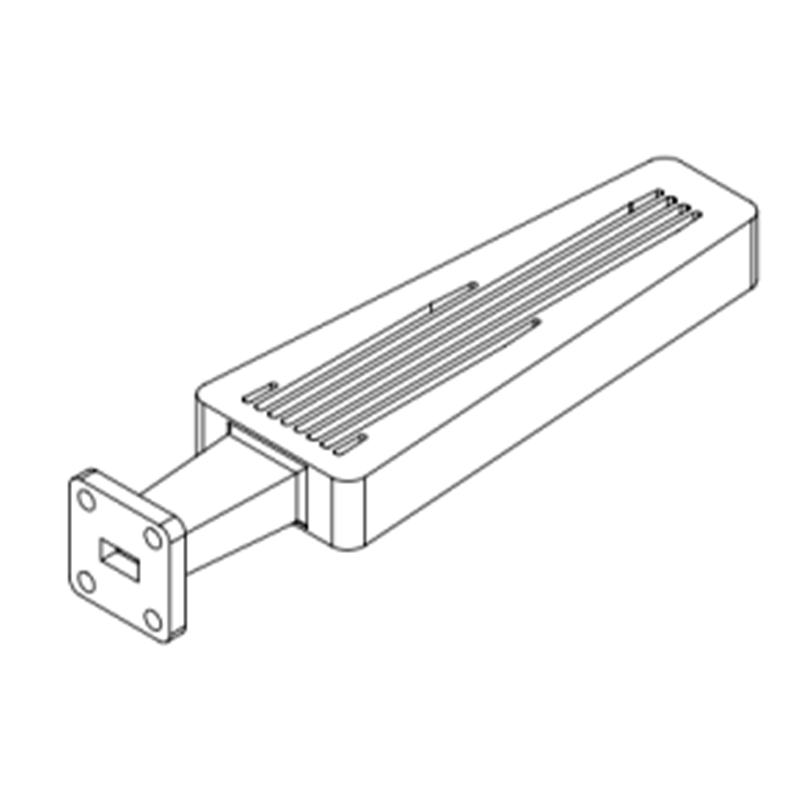

4.9-7.1GHz Waveguide Load, Rectangular Waveguide Interface RM-WL4971-43
Specifications RM-WL4971-43 Parameters Specification Unit Frequency Range 4.9-7.1 GHz VSWR 1.015Max Waveguide WR159 Return Loss <-43dB dB Size 148*81*61.9 mm Weight 0.270 Kg Avg. Power 750 W Peak Power 7.5 KW
inquiry
detail
4.9-7.1GHz Waveguide Load, Rectangular Waveguide Interface RM-WL4971-33
Specifications RM-WL4971-33 Parameters Specification Unit Frequency Range 4.9-7.1 GHz VSWR 1.05Max Waveguide WR159 Return Loss <-33dB dB Size 98*81*61.9 mm Weight 0.083 Kg Avg. Power 750 W Peak Power 7.5 KW
inquiry
detail
