Abstract:
As a fundamental component in microwave engineering, horn antennas have achieved unparalleled adoption across diverse applications due to their exceptional electromagnetic characteristics and structural reliability. This technical brief examines their predominance in modern RF systems.
Technical Advantages:
Broadband Performance: Exhibiting consistent radiation characteristics across multi-octave bandwidths (typically 2:1 or greater), horn antennas serve as reference standards in 11dBi antenna range calibration procedures.
Broadband Horn Antenna(0.5-6GHz,11dBi)

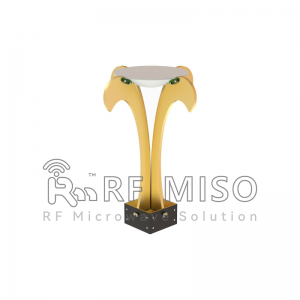

Broadband Dual Polarized Horn Antenna （0.8-12GHz，11dBi)
Broadband Horn Antenna（0.6-6GHz,11dBi)
RF Miso 11dbi series products
Precision Radiation Characteristics:
Beamwidth stability ≤ ±2° across operational bandwidth
Cross-polarization discrimination > 25dB
VSWR < 1.25:1 through optimized vacuum brazing fabrication
Structural Integrity:
Military-grade aluminum alloys with < 5μm surface roughness
Hermetic sealing for harsh environment operation (-55°C to +125°C)
Applications Analysis:
Radar Systems:
PESA Radar: Serves as feed element for passive arrays
AESA Radar: Used in subarray calibration and near-field testing
Measurement Systems:
Primary gain standard in RF antenna test equipment
Far-field range validation
EMI/EMC testing per MIL-STD-461G
Communication Systems:
Satellite ground station feeds
Point-to-point microwave links
5G mmWave base station calibration
Comparative Assessment:
While alternative antennas exist, horn configurations maintain dominance due to:
Superior cost/performance ratio
Established calibration traceability
Proven reliability (>100,000 hr MTBF)
Conclusion:
The horn antenna's unique combination of electromagnetic predictability, mechanical robustness, and measurement reproducibility ensures its continued prevalence in microwave engineering. Ongoing advancements in vacuum brazing and precision machining further enhance its applicability for next-generation systems.
References:
IEEE Standard 149-2021 (Antenna Test Methods)
MIL-A-8243/4B (Military Horn Antenna Spec)
ITU-R P.341-7 (Reference Antenna Characteristics)
