A slot antenna is a type of aperture antenna formed by creating one or more openings in a conductive surface, such as a metal plate, cavity, or waveguide wall. When electromagnetic fields excite the slot, the opening becomes a radiating element and couples energy from the guided or enclosed structure into free space.
Although the basic structure of a slot antenna may appear simple, slot-based designs play an important role in modern RF and microwave engineering. By controlling the slot length, width, position, orientation, excitation, and surrounding structure, engineers can obtain different impedance, polarization, radiation pattern, and beam characteristics.
Slot antennas can be implemented as individual radiators or arranged into larger slotted waveguide arrays, making them useful in radar, communication, measurement, sensing, and other microwave systems. The original reference article introduces the slot antenna as a rectangular opening in a conducting surface and explains its behavior using Babinet’s principle.
1. What Is a Slot Antenna?
The simplest slot antenna can be visualized as a narrow rectangular opening cut into a conductive sheet.
When an RF field is established across this opening, currents flowing on the surrounding metal surface are disturbed, and electromagnetic energy is radiated through the slot.
In theoretical analysis, the conducting sheet is often treated as infinitely large and perfectly conducting. Real antennas, however, use finite metal surfaces, waveguide walls, cavities, or other practical structures. The dimensions and environment surrounding the slot therefore influence actual antenna behavior.
Unlike a wire antenna, where current flows along a conductive element, a slot antenna radiates from an aperture in the conducting structure. This complementary relationship is one reason slot antennas are closely associated with Babinet’s principle.
2. Operating Frequency of Slot Antennas
The original reference introduces 300 MHz to 30 GHz as a typical operating range for slot antennas. This is useful as a general introduction, but it should not be interpreted as a universal frequency limit.
In practical antenna engineering, the usable frequency range depends on the specific structure. Important factors include:
- Slot length and width
- Conducting surface dimensions
- Feeding method
- Waveguide or cavity geometry
- Operating mode
- Element spacing in an array
Slot antennas are especially common in microwave systems because slots can be conveniently integrated into waveguide walls. At higher frequencies, the smaller wavelength also allows multiple slots to be arranged into compact high-directivity arrays.
3. How Does a Slot Antenna Work?
When electromagnetic fields are excited inside or near a conducting structure, surface currents flow along the metal.
Introducing a slot interrupts the normal current path. Strong electric fields can develop across the opening, and the slot couples part of the electromagnetic energy into free space.
The exact radiation behavior depends on how the slot is excited.
For example, in a slotted waveguide antenna, the position and orientation of the slot relative to the waveguide current distribution determine how strongly that particular slot is excited. Multiple slots can then be positioned and spaced to form an array with a desired gain and beam pattern.
This is why slot antenna design is not simply a matter of “cutting a hole in metal.” Slot geometry, position, spacing, phase, and feed structure must all be considered together.
Figure 1. Practical slot structure illustrating electromagnetic radiation through openings in a conductive surface.
4. Babinet’s Principle and Slot Antennas
One of the most useful concepts for understanding slot antennas is Babinet’s principle, more specifically its electromagnetic extension.
The basic idea is to compare two complementary structures:
- A slot cut into a conducting plane
- A conductive strip with the same geometry as that slot
If the metal and open regions of one structure are exchanged, the two are considered complementary.
In antenna theory, the radiation characteristics of a slot antenna can be related to those of its complementary dipole-like structure. The radiation pattern shapes are closely related, while the electric and magnetic field roles are interchanged. This also means that the polarization of a slot is orthogonal to that of its corresponding complementary dipole.
For example, a narrow horizontal slot tends to produce an electric field polarized perpendicular to the long axis of the slot.
Babinet’s principle is therefore an important tool for understanding the impedance, polarization, and radiation behavior of basic slot antennas.

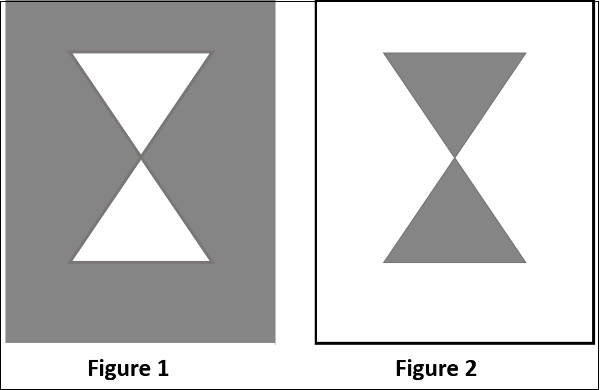

Figure 2. Illustration of complementary structures used to explain Babinet’s principle.
5. Slot Antenna and Dipole Antenna
A narrow slot and its complementary dipole provide a useful comparison in antenna theory.
Both may exhibit similar radiation pattern shapes under ideal complementary conditions, but their electromagnetic field orientation is different.
For a conventional dipole, the electric field is generally aligned with the dipole element. For the complementary slot, the electric field is perpendicular to the long axis of the slot.
This complementary relationship does not mean that every practical slot antenna behaves exactly like a dipole. Real structures may include finite ground planes, cavities, waveguides, multiple slots, dielectric materials, and nearby mechanical components, all of which can modify the impedance and radiation pattern.
6. Radiation Pattern and Polarization
The original article describes the slot antenna radiation pattern as omnidirectional and compares it with a half-wave dipole.
For a simple isolated slot in a large conducting plane, a dipole-like broad radiation pattern is a useful introductory approximation. However, “omnidirectional” should not be treated as a universal property of all slot antennas.
The final pattern depends on:
- Slot dimensions
- Slot orientation
- Conducting surface
- Feeding structure
- Number of slots
- Element spacing and phase
- Reflectors or cavities behind the slot
In a slotted waveguide array, multiple radiating slots can work together to produce a narrow, highly directional beam and significantly higher gain.
This distinction is particularly important when discussing practical radar and communication antennas.

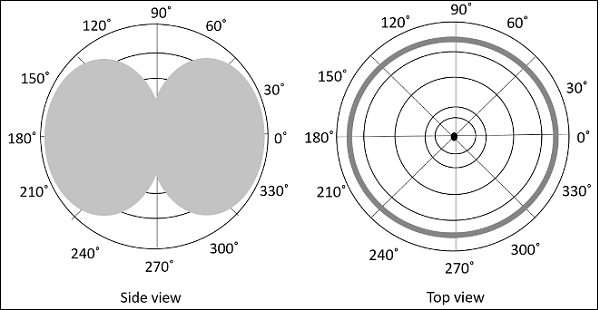

Figure 3. Dipole-like radiation pattern used to illustrate the behavior of a basic slot antenna under ideal conditions.
7. Slotted Waveguide Antennas and Arrays
One of the most important practical implementations of slot antenna technology is the slotted waveguide antenna.
In this structure, radiating slots are cut into the wall of a waveguide carrying microwave energy. Each slot couples a controlled amount of energy from the waveguide and radiates it into free space.
When multiple slots are arranged along one or more waveguide channels, they form a waveguide slot array antenna.
By carefully controlling slot position, spacing, orientation, and excitation, designers can achieve:
- Higher gain
- Narrower beamwidth
- Controlled sidelobes
- Desired polarization
- Compact planar apertures
RF MISO currently offers Waveguide Slot Antennas and slotted waveguide products for microwave applications. For example, its product portfolio includes 8.6–9.6 GHz and 9–10 GHz slotted waveguide antennas with linear polarization and high-gain configurations.
RF MISO also uses waveguide slot array architectures in its R&D work, including X-band array designs.
8. Advantages of Slot Antennas
Slot antennas offer several practical advantages:
Low-profile integration
Slots can be formed directly in conducting panels or waveguide walls.
Good mechanical integration
The radiating structure does not always require a protruding external element.
Suitable for antenna arrays
Multiple slots can be combined efficiently into planar or waveguide-fed arrays.
Flexible beam design
Slot arrangement and excitation can be optimized for different gain and radiation requirements.
Compatibility with waveguide systems
At microwave and millimeter-wave frequencies, slots can be integrated directly with low-loss waveguide feeding structures.
9. Limitations and Design Considerations
Slot antennas also involve several engineering challenges.
A single slot may provide limited gain and relatively broad radiation. Achieving higher directivity typically requires an array structure.
Performance can also be sensitive to:
- Slot machining accuracy
- Ground-plane dimensions
- Waveguide tolerances
- Slot-to-slot spacing
- Feeding phase
- Surface quality
- Structural alignment
At high microwave and millimeter-wave frequencies, small mechanical errors can represent a significant fraction of the wavelength. Manufacturing precision therefore becomes increasingly important.
The original article lists higher cross-polarization and lower radiation efficiency as general disadvantages. In practice, these characteristics are strongly design-dependent and should not be treated as unavoidable properties of every slot antenna or slot array.
10. Applications of Slot Antennas
Slot antennas and slotted waveguide arrays are widely used in RF and microwave systems, including:
- Radar systems
- Microwave communication
- Antenna arrays
- Navigation systems
- RF measurement
- Sensing systems
- Satellite and aerospace platforms
- Waveguide-fed antenna systems
The original reference particularly highlights radar navigation and waveguide-fed arrays as common slot antenna applications.
For high-directivity microwave systems, slotted waveguide arrays provide a practical combination of planar geometry, waveguide feeding, controlled radiation patterns, and array scalability.
Conclusion
A slot antenna converts electromagnetic energy into free-space radiation through an aperture formed in a conductive surface.
Although its basic geometry is simple, the electromagnetic behavior of a slot depends strongly on its dimensions, orientation, excitation, and surrounding structure.
Babinet’s principle provides a useful theoretical connection between slot antennas and complementary dipole structures, helping engineers understand their polarization and radiation characteristics.
In practical microwave engineering, the slot concept becomes especially powerful when combined with waveguide technology. Multiple slots can be integrated into slotted waveguide antenna arrays, enabling higher gain, controlled beamwidth, and compact planar antenna architectures for radar, communication, measurement, and sensing systems.
