The RM-TCR44 from RF MISO is a trihedral corner reflector developed for radar and electromagnetic test environments where stable echo response and dependable mechanical performance are required. Built with a robust aluminum structure, it is designed to deliver long-term durability and reliable operation in demanding field or laboratory conditions. As a passive reflective target, the RM-TCR44 returns incident radio waves directly back toward the transmitting source without the need for external power, making deployment straightforward while reducing maintenance complexity.
In practical use, reflector performance depends not only on geometry but also on the quality of the reflective cavity. The RM-TCR44 is specially engineered with a smooth and well-finished reflection cavity to support consistent retroreflection behavior and dependable test results. This makes it particularly suitable for radar cross section (RCS) measurement, while also supporting calibration tasks, target simulation, and other applications that require a stable passive reflection reference.
For users involved in radar evaluation, electromagnetic testing, and related system verification, the RM-TCR44 offers a balanced solution that combines structural reliability, passive operation, and practical measurement value.

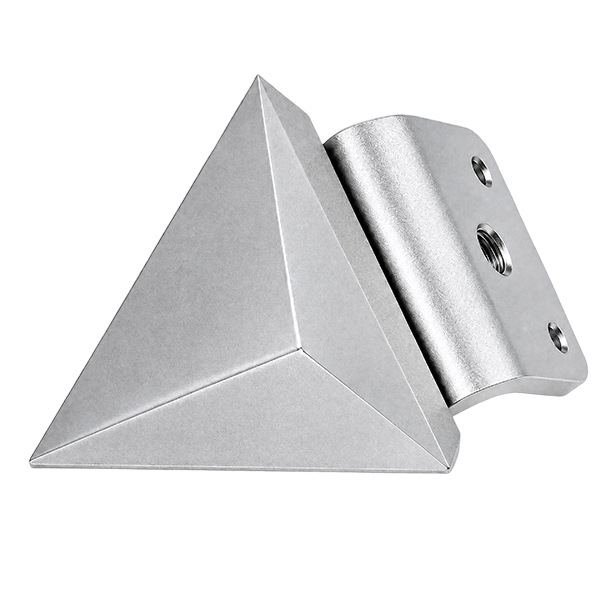

RM-TCR44: Actual Product Photos
Calculate Radar Cross Section
|
Frequency (GHz） |
Wavelength (mm) |
RCS (m^2) |
RCS(dBsm) |
|
60 |
5 |
0.155 |
-8.1 |
|
61 |
4.92 |
0.16 |
-7.96 |
|
62 |
4.84 |
0.165 |
-7.81 |
|
63 |
4.76 |
0.171 |
-7.67 |
|
64 |
4.69 |
0.176 |
-7.54 |
