The RM-BDPHA130-15 is a broadband dual polarized horn antenna designed for engineers who need stable wideband performance from 1 GHz to 30 GHz. With a typical gain of 15 dBi and a typical VSWR of 1.5, this antenna is well suited for RF testing, antenna measurement, EMI detection, direction finding, reconnaissance systems and general microwave laboratory applications.
One of the key advantages of the RM-BDPHA130-15 is its dual-polarized structure. It allows users to work with two orthogonal polarizations in one antenna assembly, helping reduce setup complexity when testing polarization-sensitive RF systems. The antenna also offers 35 dB typical cross-polarization isolation, which supports cleaner measurement results and better separation between polarization channels.
Covering L-band through the lower Ka-band range, this 1-30 GHz dual polarized horn antenna is a practical choice for wideband test systems. Its 3 dB beamwidth ranges from 6.43° to 81.61° in the E-plane and from 5.47° to 141.69° in the H-plane, making it suitable for different measurement distances, chamber setups and radiation pattern evaluations.
The antenna uses SMA-Female connectors and supports 50 W CW power handling and 100 W peak power handling. With an aluminum painted structure, a compact size of Ø172.5 × 177.8 mm ±5 mm and a weight of about 1.037 kg, the RM-BDPHA130-15 provides a balance of broadband capability, mechanical practicality and measurement reliability.
For RF engineers, system integrators and test laboratories looking for a broadband dual polarized horn antenna for 1-30 GHz applications, the RM-BDPHA130-15 offers a dependable solution for measurement, detection and wideband microwave system evaluation.

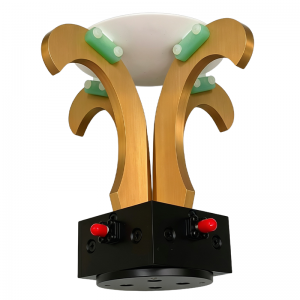

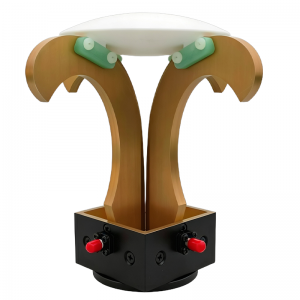

RM-BDPHA130-15: Actual Product Photos
Simulation Data

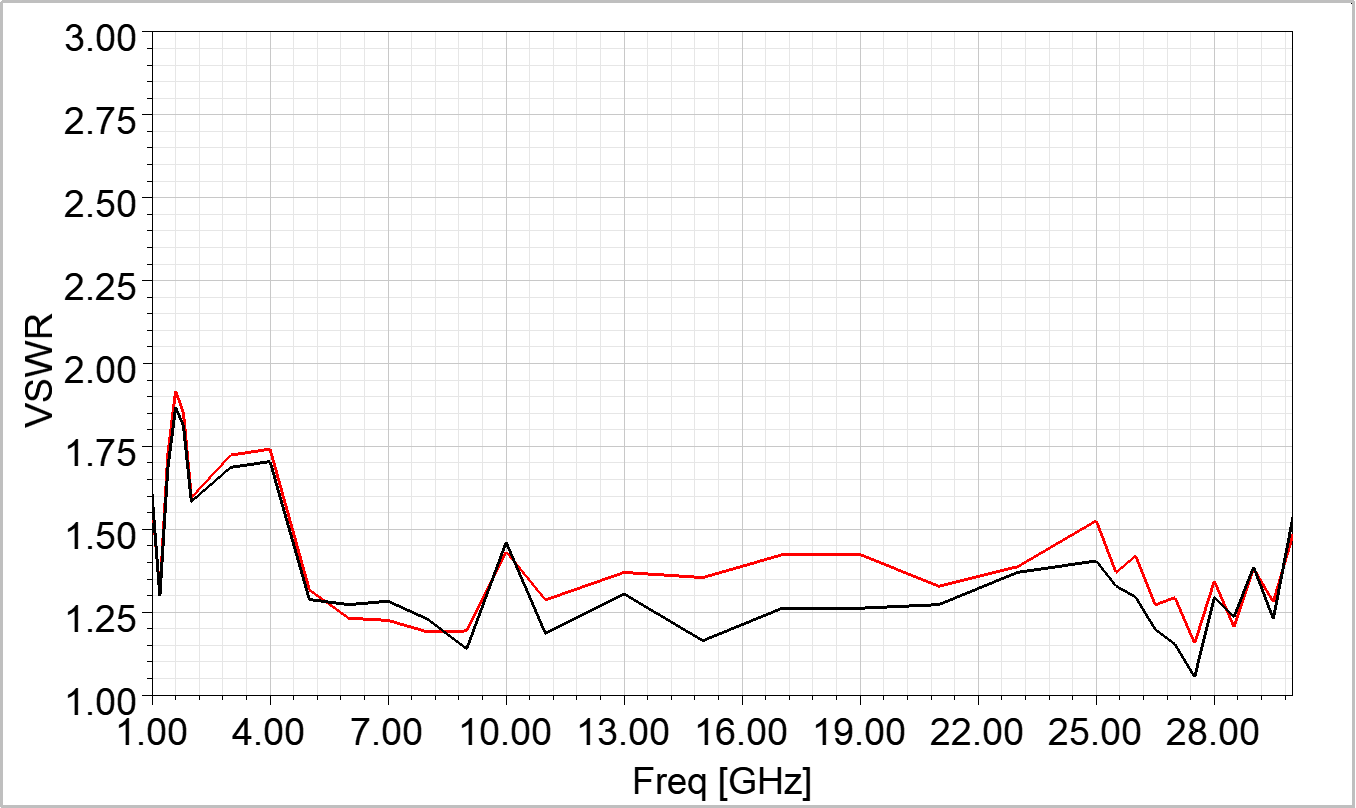

VSWR

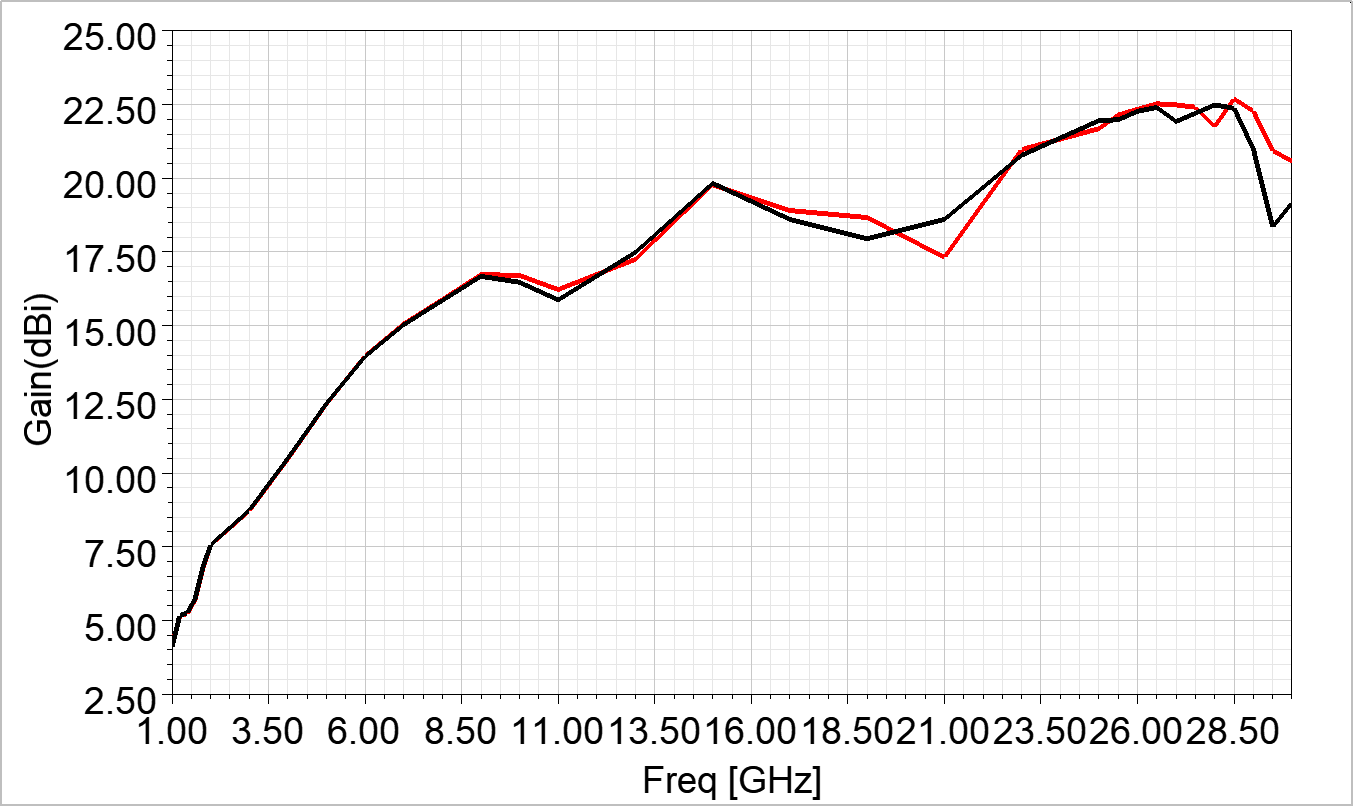

Gain
