Broadband horn antennas are widely used in RF and microwave systems that require stable performance over a wide frequency range. They are commonly found in EMI/EMC testing, antenna gain and pattern measurement, radar evaluation, direction finding, wireless communication testing, and laboratory research. Because one antenna can cover multiple frequency bands, broadband horn antennas help simplify test setups and reduce the need for frequent equipment changes.
One of the main advantages of a broadband horn antenna is its wide operating bandwidth, which makes it suitable for versatile measurement tasks. It also offers stable gain, good directivity, and low VSWR, helping improve signal transmission efficiency and test accuracy. For engineers working in test and measurement, aerospace, defense, or microwave development, broadband horn antennas are often a practical and reliable choice.
RF MISO’s RM-BDHA046-10 is a double-ridged broadband horn antenna with linear polarization, designed for wideband RF and microwave applications from 0.4 to 6 GHz. With its broad frequency coverage, this antenna is a practical solution for engineers and testing teams who need reliable performance across multiple bands without changing antennas.
RM-BDHA046-10
The RM-BDHA046-10 provides a typical gain of 10 dBi and maintains a low VSWR of 1.5:1, helping improve signal transmission efficiency and measurement consistency over the full operating range. Equipped with an SMA-F connector, it is easy to integrate into a variety of test systems, laboratory environments, and field measurement setups.
This broadband horn antenna is well suited for applications such as EMI detection, direction finding, reconnaissance, antenna gain measurement, and radiation pattern testing. Its stable electrical performance makes it a dependable choice for RF testing, antenna characterization, and other broadband measurement tasks.
For customers looking for a broadband horn antenna manufacturer or a reliable RF horn antenna solution for test and measurement, the RM-BDHA046-10 offers an effective combination of wide bandwidth, stable gain, and low reflection performance. It is an excellent option for use in RF laboratories, EMC testing projects, and microwave system development.
Specifications：
|
RM-BDHA046-10 |
||
|
Parameters |
Typical |
Units |
|
Frequency Range |
0.4-6 |
GHz |
|
Gain |
10 Typ. |
dBi |
|
VSWR |
1.5 Typ. |
|
|
Polarization |
Linear |
|
|
Cross Polarization Isolation |
30 |
dB |
|
Connector |
SMA-F |
|
|
Finishing |
Paint |
|
|
Size(L*W*H) |
540*603.5*398.3(±5) |
mm |
|
Weight |
5.985 |
kg |
|
Power(Average Value) |
About 500 |
w |

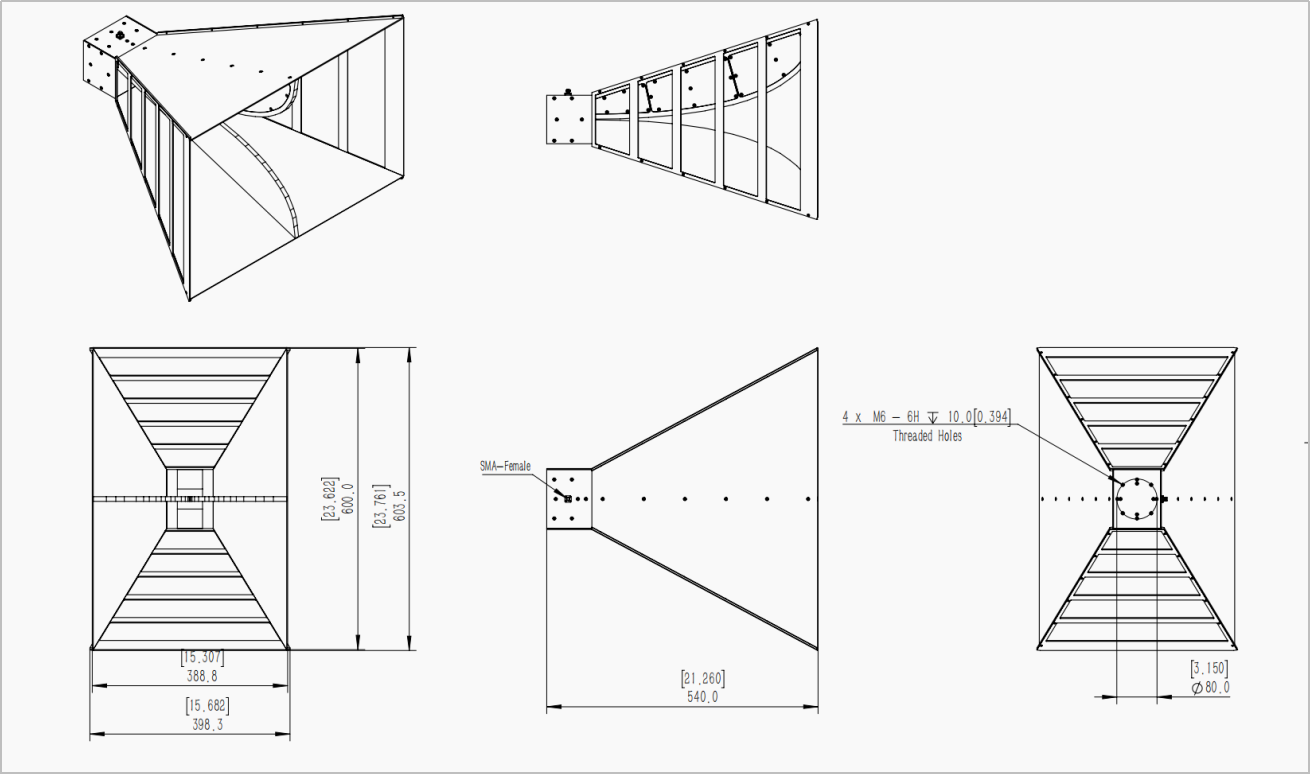

Mechanical Drawing:

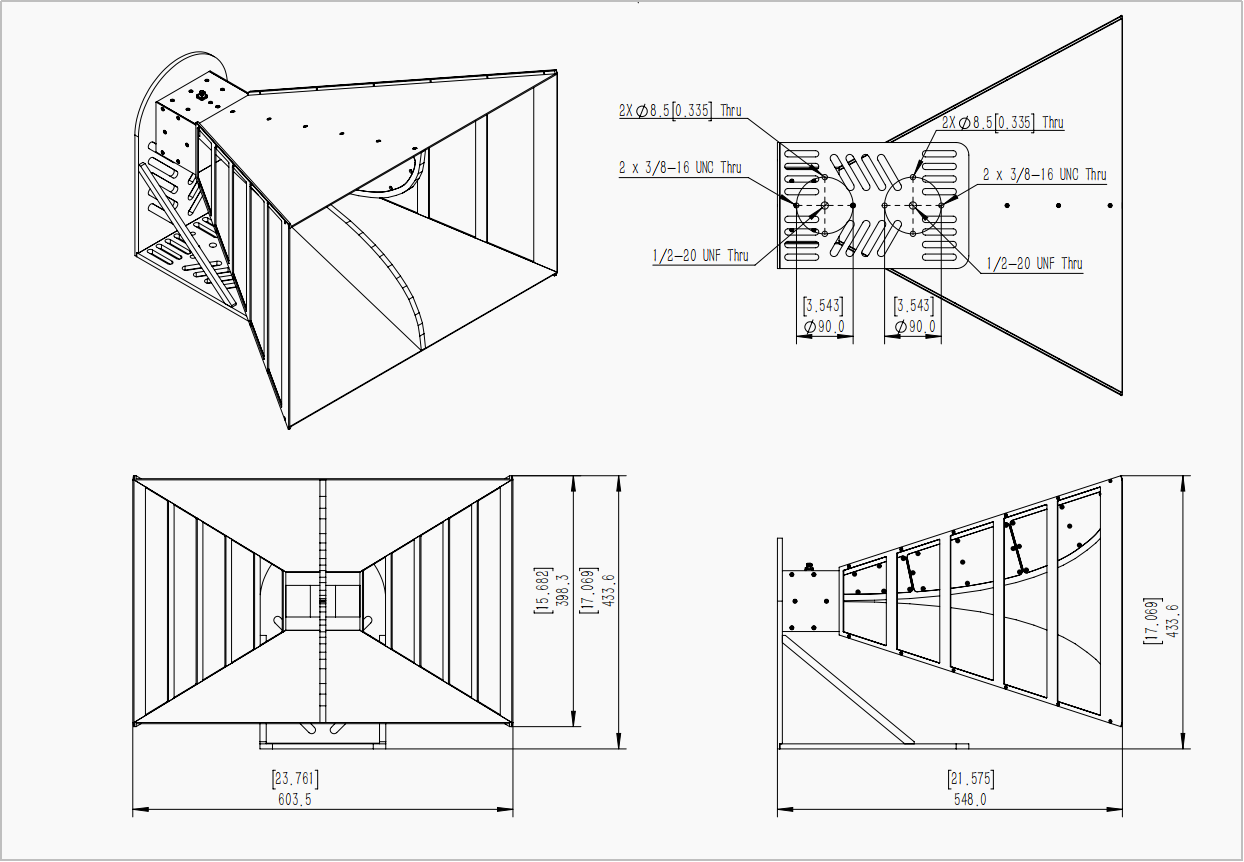

Mechanical Drawing with Ordinary L-type Mounting Bracket :
Simulated Results：

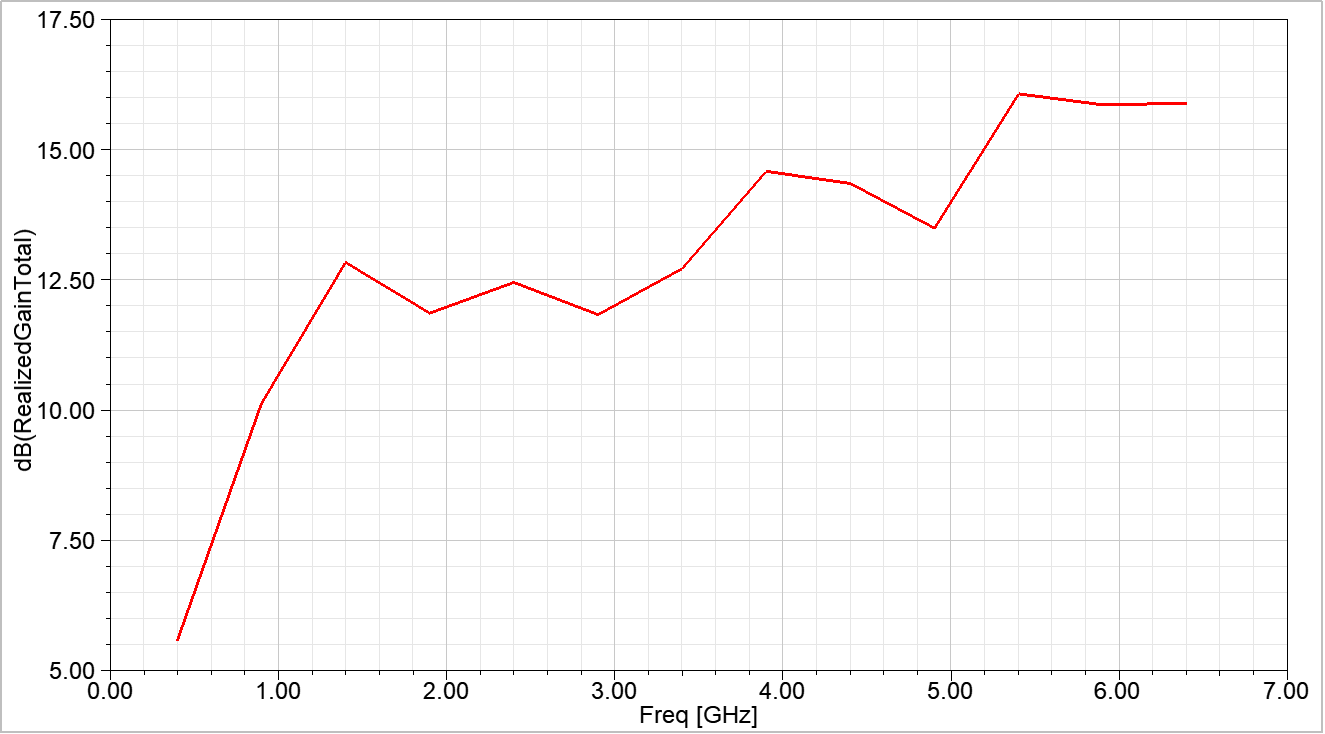

Gain

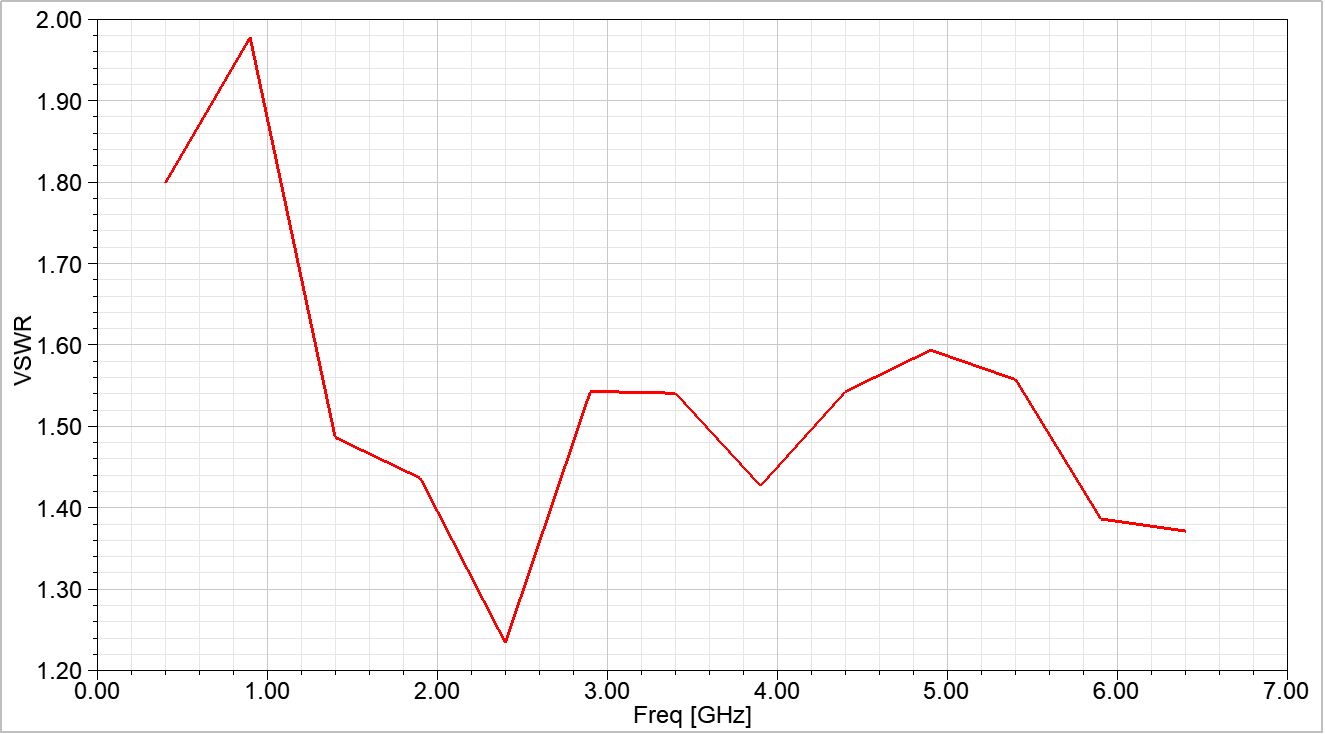

VSWR
