Horn antennas are among the most widely used directional antennas in microwave and millimeter-wave engineering. Their simple mechanical structure, predictable radiation characteristics, relatively low reflection, and ability to achieve moderate to high gain make them valuable in antenna measurement, EMC testing, radar, communication systems, feed systems, and RF laboratories.
A horn antenna can essentially be regarded as a waveguide with a gradually flared aperture. Instead of allowing electromagnetic waves to encounter an abrupt transition from the waveguide to free space, the flared section provides a more gradual transformation. This helps improve impedance matching and directs more of the electromagnetic energy into a controlled radiation beam.
Depending on the waveguide geometry and the direction in which the aperture is expanded, horn antennas can be designed in several forms, including sectoral horns, pyramidal horns, and conical horns. The original reference article uses these three configurations as the main introduction to horn antenna structures.
1. How Does a Horn Antenna Work?
A waveguide confines electromagnetic energy within a conducting structure. When the guided wave reaches an open end, part of the energy radiates into free space, while part may be reflected because of the transition between the waveguide and free-space impedances.
A horn antenna reduces the abruptness of this transition by gradually increasing the waveguide cross section toward the aperture.
As the electromagnetic wave propagates through the flared section, the field expands over a larger aperture. The aperture then radiates into free space and produces a directional beam.
The flare therefore serves two important purposes:
- It provides a smoother transition between the waveguide and free space.
- It increases the effective radiating aperture, allowing greater directivity and gain.
It is important to note that a horn does not completely eliminate reflections or standing waves. Instead, an appropriately designed horn can reduce reflection and provide good impedance matching, which is commonly reflected in a relatively low VSWR.

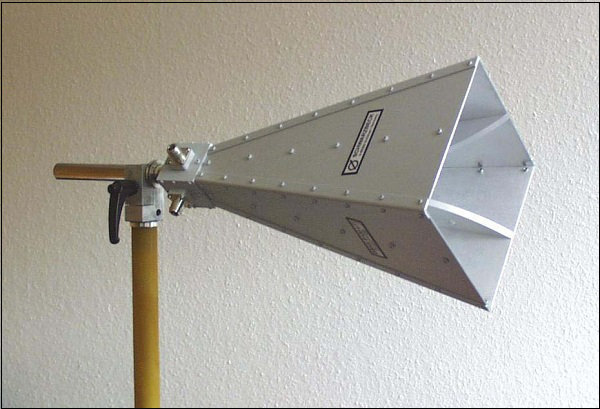

Figure 1. Typical horn antenna with a gradually flared waveguide aperture.
2. Operating Frequency of Horn Antennas
Horn antennas do not have one universal frequency range.
Their operating frequency is largely determined by the waveguide dimensions, waveguide mode, aperture geometry, feed structure, and intended bandwidth.
Traditional horn antennas are especially common at microwave and millimeter-wave frequencies because waveguide dimensions become practical as wavelength decreases. However, specially designed broadband horn structures can also operate at lower frequencies, while precision waveguide horns can extend well into millimeter-wave and sub-THz bands.
For example, horn antenna designs can be found from the hundreds-of-megahertz range to well above 100 GHz. RF MISO currently offers broadband horn configurations operating from 300–750 MHz, as well as conical horn antennas covering 220–325 GHz, illustrating how broad the practical frequency span of this antenna family can be.
3. Main Types of Horn Antennas
3.1 Sectoral Horn Antenna
A sectoral horn is produced when a rectangular waveguide is flared in only one plane.
If the waveguide is expanded in the E-plane, the structure is called an E-plane sectoral horn. If the expansion occurs in the H-plane, it is called an H-plane sectoral horn.
Because the aperture dimension increases in only one plane, beam shaping is more pronounced in that corresponding plane.
3.2 Pyramidal Horn Antenna
A pyramidal horn is formed when a rectangular waveguide is flared in both the E-plane and H-plane directions.
The resulting structure resembles a truncated pyramid and provides aperture expansion in both dimensions.
Pyramidal horns are widely used as standard gain horns and reference antennas because their gain and radiation patterns can be accurately characterized.
RF MISO, for example, offers standard gain horn antennas across numerous microwave and millimeter-wave bands. Its WR10 standard gain horn family includes models operating from 75 to 110 GHz, with specified gain, VSWR, polarization and beamwidth characteristics.
3.3 Conical Horn Antenna
A conical horn is generally formed by gradually expanding a circular waveguide toward a circular aperture.
Unlike a pyramidal horn, which originates from a rectangular waveguide, a conical horn has rotationally symmetric geometry.
Conical horn antennas are commonly used in microwave, millimeter-wave, feed and measurement applications. Depending on the feed structure and polarization network, they can also support more specialized polarization configurations.

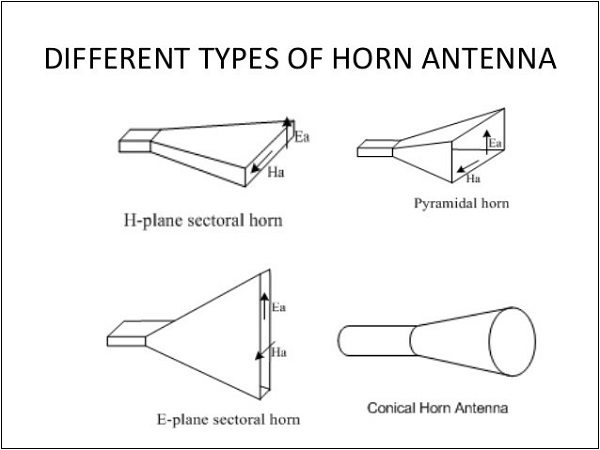

Figure 2. Typical horn antenna configurations: E-plane sectoral, H-plane sectoral, pyramidal and conical horns.
4. Flare Angle, Aperture Size and Horn Length
The geometry of a horn has a direct influence on its electromagnetic performance.
Three important design parameters are:
flare angle, aperture size, and horn length.
A larger aperture can generally provide higher directivity and a narrower beam, but simply increasing the flare angle does not automatically produce better performance.
If the horn is too short for a given aperture size, excessive phase variation may appear across the aperture. This reduces aperture efficiency and can degrade the radiation pattern.
Conversely, making the horn excessively long increases mechanical size and weight without necessarily providing a proportional improvement in performance.
Horn design therefore involves balancing:
- Aperture size
- Flare angle
- Length
- Phase error
- Gain
- Beamwidth
- Mechanical dimensions
5. Radiation Pattern and Beam Characteristics
Horn antennas are generally directional radiators.
Electromagnetic energy is concentrated primarily in the forward direction through the aperture, producing a clearly defined main beam together with sidelobes.
Two radiation pattern cuts are particularly important:
- E-plane radiation pattern
- H-plane radiation pattern
The 3 dB beamwidth is commonly used to describe the angular width of the main beam between the two points where the radiated power falls 3 dB below its maximum value.
In general, increasing the effective aperture relative to wavelength increases directivity and tends to narrow the beam.
This relationship can also be observed in practical millimeter-wave horn antennas. For example, RF MISO's 75–110 GHz standard gain horns specify E-plane and H-plane beamwidth characteristics together with gain and VSWR data.

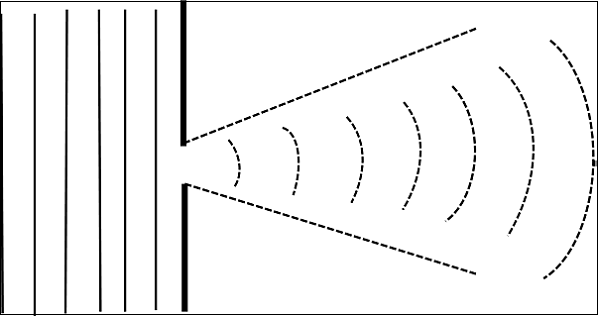

Figure 3. Illustration of electromagnetic wave expansion and radiation through a horn aperture.
6. Advantages of Horn Antennas
Horn antennas offer several advantages for RF and microwave systems:
Good directivity
The enlarged aperture concentrates radiation toward the forward direction.
Predictable radiation characteristics
Well-designed horn antennas can provide stable and well-defined E-plane and H-plane patterns.
Good impedance matching
The gradual transition from waveguide to free space can reduce reflection and support low VSWR.
Moderate to high gain
Different aperture sizes and horn lengths can be designed to provide different gain levels.
Relatively simple structure
Compared with many complex high-gain antenna architectures, conventional horns are mechanically straightforward and robust.
Suitable for high-frequency measurement
Their waveguide-based architecture makes horn antennas particularly valuable in microwave and millimeter-wave measurement systems.
7. Design Considerations and Limitations
Horn antennas also involve several engineering trade-offs.
Higher gain generally requires a larger electrical aperture, which may increase the physical dimensions of the antenna.
The relationship among aperture size, horn length and flare angle must also be carefully controlled to maintain acceptable phase distribution across the aperture.
At very high frequencies, machining accuracy, surface quality, waveguide dimensions and flange alignment become increasingly important because even relatively small mechanical errors can represent a significant fraction of the wavelength.
Engineers therefore need to evaluate not only gain and frequency range, but also:
VSWR, polarization, cross-polarization performance, beamwidth, sidelobe level, RF interface, power handling and mechanical tolerance.
8. Applications of Horn Antennas
Because of their directional radiation, stable characteristics and compatibility with waveguide systems, horn antennas are widely used in:
- Antenna gain measurement
- Radiation pattern measurement
- EMC and EMI testing
- Radar systems
- Microwave and millimeter-wave communication
- Satellite antenna testing
- Direction finding and surveillance
- Anechoic chamber measurement
- Reflector antenna feeds
- RF research and laboratory systems
- Calibration and reference antenna applications
Broadband horn designs can also provide wide operating bandwidth for measurement and monitoring systems. For example, RF MISO's 18–40 GHz broadband horn antennas are specified for applications including microwave testing, antenna measurement, satellite antenna testing, direction finding, surveillance and EMC-related measurements.
Conclusion
A horn antenna transforms a guided electromagnetic wave into directional free-space radiation through a gradually expanding waveguide aperture.
Its combination of good impedance matching, directional radiation, predictable beam characteristics, useful gain and relatively simple construction has made the horn one of the most important antenna structures in microwave and millimeter-wave engineering.
From sectoral and pyramidal horns to conical and broadband designs, different structures can be optimized for specific frequency ranges, polarization requirements, gain levels and measurement environments.
For engineers selecting a horn antenna, frequency range is only the starting point. Gain, VSWR, beamwidth, polarization, waveguide or coaxial interface, power handling and mechanical dimensions should all be evaluated according to the requirements of the complete RF system.
