What Is a Helical Antenna?
A helical antenna, also known as a helix antenna, is a wire antenna formed by winding a conductive wire or tube into a three-dimensional helix. One end of the helix is normally connected to the center conductor of the feed line, while the outer conductor is connected to a metallic ground plane or reflector.
Its distinctive geometry allows the antenna to operate in different radiation modes depending on the relationship between the helix dimensions and the operating wavelength.
Among these modes, the axial mode is especially important in RF and microwave engineering because it can provide directional radiation, relatively wide bandwidth, and circular polarization. These characteristics make helical antennas useful in satellite links, telemetry, tracking, space communication, radio astronomy, and other applications where antenna orientation may change.
The operating frequency of a helical antenna is not limited to one fixed band. Instead, it is primarily determined by its physical dimensions relative to wavelength. Helical structures can therefore be designed for VHF and UHF systems as well as higher-frequency RF and microwave applications.
Figure 1. Example of helical antennas used in a directional communication system.
Basic Structure of a Helical Antenna
A typical helical antenna consists of four main parts:
- Helical conductor
- Ground plane or reflector
- RF feed point
- Mechanical support structure
The helix is commonly made from copper wire, tubing, or another conductive material. One end is connected to the center conductor of a coaxial transmission line, while the coaxial outer conductor is electrically connected to the ground plane.
The ground plane helps control the radiation direction and acts as part of the antenna feeding structure. In practical designs, its dimensions can significantly influence impedance, front-to-back performance, and the resulting radiation pattern.
Several geometric parameters determine the electrical behavior of the antenna:
- D — Helix diameter
- C — Circumference of one turn
- S — Spacing between adjacent turns
- N — Number of turns
- α — Pitch angle
- L — Total axial length
The circumference is:
[C=\pi D]
The pitch angle can be expressed as:
[\alpha=\tan^{-1}\left(\frac{S}{\pi D}\right)]
These parameters cannot be considered independently because changing one dimension alters the antenna's impedance, polarization, beamwidth, gain, and operating frequency.
Figure 2. Typical helical antenna structure with helix conductor and ground-plane reflector.
Two Main Radiation Modes
One of the most interesting characteristics of a helical antenna is that the same basic structure can produce very different radiation patterns depending on its electrical size.
The two commonly discussed operating modes are:
- Normal mode
- Axial mode
Understanding the difference between these two modes is essential when selecting or designing a helical antenna.
Normal-Mode Helical Antenna
In normal mode, the overall diameter and spacing of the helix are electrically small compared with the wavelength.
Radiation is primarily directed approximately perpendicular to the helix axis rather than along it. The electromagnetic behavior can be understood as a combination of the fields produced by a short electric dipole and a small loop.
Depending on the helix geometry, pitch angle, feed arrangement, and observation direction, the resulting polarization may be linear, elliptical, or in certain designs close to circular.
Normal-mode helices are typically compact, but their electrically small dimensions result in relatively low radiation resistance. This can lead to lower radiation efficiency and narrower bandwidth than an axial-mode design.
They are therefore useful when antenna size is a major constraint and very high gain is not required.

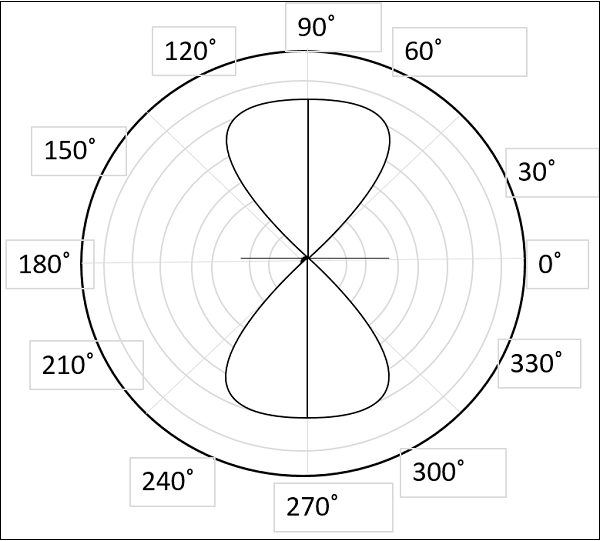

Figure 3. Illustrative radiation pattern of a normal-mode helical antenna.
Axial-Mode Helical Antenna
The axial mode, sometimes called end-fire mode, is the configuration most commonly associated with high-performance helical antennas.
In this mode, electromagnetic energy is radiated mainly along the axis of the helix, forming a directional beam.
A typical axial-mode design uses a helix circumference approximately comparable to one wavelength:
[C \approx \lambda]
The turn spacing is often around:
[S \approx 0.2\lambda \text{ to } 0.3\lambda]
with approximately one-quarter wavelength being a common starting point.
For many conventional axial-mode designs, pitch angles around 12°–14° are frequently used.
Under appropriate geometrical conditions, fields generated by successive turns combine constructively along the helix axis. This produces a directional beam together with circular or near-circular polarization.
The number of turns also affects antenna performance. Increasing the number of turns can generally increase directivity and gain while narrowing the main beam, although practical designs must also consider mechanical length, conductor loss, impedance matching, and installation constraints.

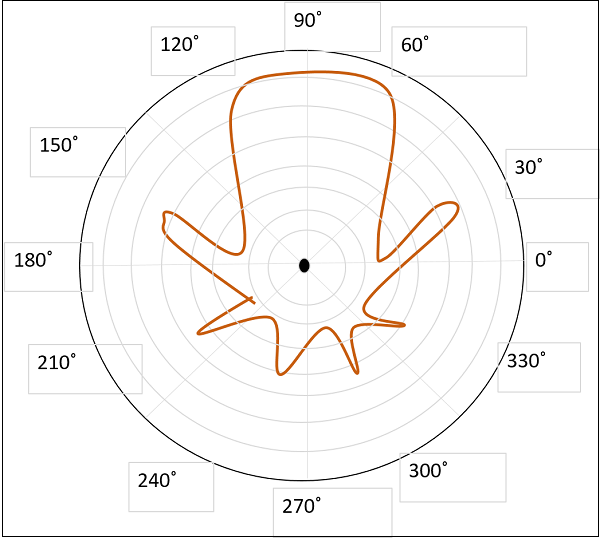

Figure 4. Illustrative axial-mode helical antenna radiation pattern with a directional main beam.
Right-Hand and Left-Hand Circular Polarization
One of the major advantages of an axial-mode helical antenna is its natural ability to generate circular polarization.
Depending on the winding direction and radiation direction, a helix can be designed to produce either:
- RHCP — Right-Hand Circular Polarization
- LHCP — Left-Hand Circular Polarization
Circular polarization is particularly useful when the relative orientation between the transmitting and receiving antennas cannot remain fixed.
For example, satellites, spacecraft, airborne platforms, rotating systems, and mobile communication equipment may continuously change orientation. A circularly polarized antenna can reduce the sensitivity of the communication link to this angular variation.
Polarization matching is still important. An RHCP antenna ideally communicates with an RHCP antenna, while an LHCP antenna should normally be paired with an LHCP antenna. Opposite circular polarizations can result in significant polarization loss.
For engineering evaluation, axial ratio is commonly used to describe circular-polarization quality. An ideal circularly polarized wave has an axial ratio of 0 dB, while practical circularly polarized antennas are often evaluated against a specified axial-ratio requirement across the desired frequency and angular range.
Factors Affecting Helical Antenna Performance
The behavior of a helical antenna is closely related to its geometry.
Important design parameters include:
Helix Circumference
The relationship between circumference and wavelength plays a major role in determining whether the antenna operates in normal mode or axial mode.
Turn Spacing
Spacing affects the phase relationship between currents on adjacent turns and therefore influences beam direction, impedance, and polarization.
Pitch Angle
The pitch angle describes how rapidly the helix progresses along its axis. It is an important parameter for maintaining stable axial-mode behavior.
Number of Turns
More turns generally increase electrical aperture and can provide higher directivity, but they also increase antenna length and mechanical complexity.
Ground Plane
The size and shape of the reflector influence the forward radiation pattern, impedance, and backward radiation.
Feed and Impedance Matching
Even with correct helix dimensions, poor impedance matching can increase reflected power and reduce realized antenna performance. Practical designs therefore need to evaluate return loss or VSWR together with radiation characteristics.
Radiation Pattern and Gain
In axial mode, a helical antenna produces a main beam centered approximately along the helix axis.
As the electrical length and number of turns increase, the main beam generally becomes narrower and antenna directivity increases. Side lobes may also appear, especially in longer or non-optimized structures.
The antenna should therefore not be evaluated by gain alone. Engineers normally consider several characteristics together:
- Gain
- Realized gain
- Half-power beamwidth
- Axial ratio
- VSWR or return loss
- Front-to-back ratio
- Side-lobe level
- Polarization purity
- Radiation efficiency
This combination of parameters provides a much more complete picture of antenna performance than a single gain value.
Advantages of Helical Antennas
Helical antennas offer several useful engineering advantages:
- Relatively simple mechanical construction
- Natural circular-polarization capability in axial mode
- Useful operating bandwidth
- Good directional performance
- Scalable geometry for different frequency ranges
- Flexible RHCP or LHCP implementation
- Suitable for individual antennas or antenna arrays
Design Limitations
There are also several factors to consider:
- Axial-mode designs may require significant physical length
- Higher gain normally requires more turns and therefore a longer antenna
- Performance depends strongly on geometric accuracy
- Ground-plane dimensions influence radiation characteristics
- Feed matching must be properly designed
- Mechanical support becomes more important at higher turn counts
- Opposite circular-polarization senses can produce high polarization mismatch loss
Typical Applications
Helical antennas can be found in a wide range of RF systems, including:
- Satellite communication
- Spacecraft telemetry and tracking
- Ground-station communication
- Radio astronomy
- Airborne and aerospace communication systems
- RF telemetry
- Directional VHF and UHF links
- Remote sensing
- Antenna measurement and research
- Circular-polarization experiments
- Communication system testing
Why Helical Antennas Matter in RF Engineering
The helical antenna is an excellent example of how antenna geometry controls electromagnetic behavior.
By changing parameters such as circumference, spacing, pitch angle, and number of turns, engineers can move from a compact broadside radiator to a directional circularly polarized antenna.
This relationship between physical geometry and electrical performance is also important when studying more advanced antenna technologies such as circularly polarized horn antennas, antenna arrays, satellite antennas, broadband measurement antennas, and microwave communication systems.
RF MISO develops antennas and microwave components for RF testing, communication, radar, antenna measurement, and system integration applications. Understanding fundamental antenna structures such as the helical antenna helps engineers better evaluate important parameters including frequency range, gain, polarization, axial ratio, beamwidth, VSWR, and radiation pattern.
