In broadband RF testing and electromagnetic measurement, antenna selection plays an important role in overall test accuracy and efficiency. For engineers working in EMI detection, antenna calibration, pattern measurement, and field-oriented microwave applications, a stable and wideband log periodic antenna is often a preferred solution. RF MISO offers two practical models in this category: the RM-LPA042-6 and the RM-LPA052-7.

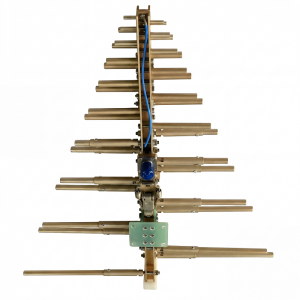

The RM-LPA042-6 is a log periodic antenna operating from 0.4 to 2 GHz. It delivers a typical gain of 6 dBi, with VSWR less than 1.7, and features an N-F connector. Its broad frequency coverage makes it suitable for a variety of low-frequency to mid-band RF testing tasks, especially where consistent directional performance and wide operational bandwidth are required.
RM-LPA042-6

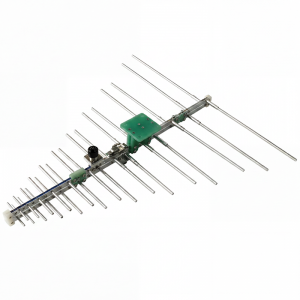

The RM-LPA052-7 covers a slightly narrower but still highly practical range of 0.5 to 2 GHz. This model offers 7 dBi typical gain, VSWR less than 1.5, and uses an N-Female connector. Compared with the RM-LPA042-6, it provides slightly higher gain and improved matching performance, which may be beneficial in applications where signal strength and lower reflection are especially important.
RM-LPA052-7
Although the two antennas differ in starting frequency, gain, and connector type, both are designed to meet the needs of broadband testing environments. Their log periodic structure supports stable electrical performance across a wide frequency range, making them useful tools for engineers and laboratories that need flexible antenna solutions without frequent model changes.
These two antennas can be widely used in EMI detection, orientation, reconnaissance, antenna gain measurement, and radiation pattern testing. In many RF and EMC test scenarios, a broadband log periodic antenna is valued for its balance between frequency coverage, directivity, and measurement repeatability. This makes it a practical choice for test facilities, research institutions, and system development teams.
For users looking for reliable log periodic antenna solutions, the RM-LPA042-6 and RM-LPA052-7 provide two strong options in the sub-2 GHz range. Whether the priority is broader low-end frequency coverage or slightly higher gain and tighter VSWR performance, these models offer professional capabilities for demanding RF applications.
If your work involves broadband antenna testing, EMI measurement, or general RF system evaluation, these two RF MISO log periodic antennas are well worth consideration.
