Aperture antennas are an important class of antennas widely used in microwave, millimeter-wave, radar, communication, and antenna measurement systems. Unlike wire antennas, which radiate primarily through currents flowing along conductive elements, aperture antennas radiate electromagnetic energy through an opening or aperture.
A common example is an open-ended waveguide. When electromagnetic waves travel through a waveguide and reach an open end, part of the guided energy is radiated into free space. By controlling the aperture geometry, field distribution, and surrounding structure, engineers can further improve impedance matching, directivity, gain, and radiation characteristics.
Common aperture-type antennas include open-ended waveguide antennas, horn antennas, and slot antennas. The original reference article also groups these three structures under aperture antennas.
1. What Is an Aperture Antenna?
In antenna engineering, an aperture can be considered an opening through which electromagnetic fields couple from a guided structure into free space.
A waveguide is designed to confine and guide electromagnetic energy. If the waveguide is terminated by a conductive wall, the energy remains confined or is reflected according to the termination conditions. When the waveguide is opened, however, the electromagnetic field at the aperture can radiate into free space.
The aperture therefore acts as the transition region between a guided electromagnetic mode and a radiated electromagnetic wave.
The actual radiation characteristics depend on several factors, including:
- Aperture dimensions and shape
- Operating wavelength
- Waveguide mode
- Electric and magnetic field distribution
- Flange or surrounding conducting structure
- Impedance matching at the aperture
Research on open-ended rectangular waveguides shows that both the aperture fields and diffraction from surrounding flange edges can contribute to the resulting radiated field.

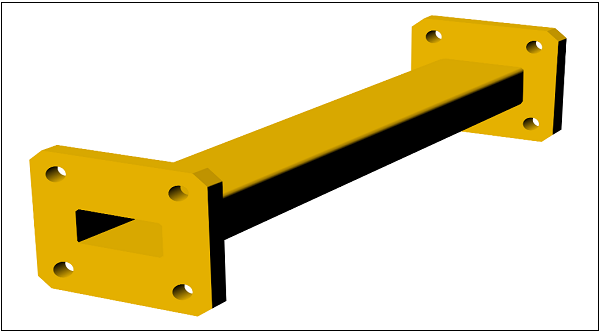

Figure 1. Example of a rectangular waveguide structure used to illustrate aperture radiation.
2. How Does an Open-Ended Waveguide Radiate?
When a propagating waveguide mode reaches an open aperture, the electromagnetic boundary conditions change abruptly. The fields are no longer completely confined by the conducting walls, allowing part of the electromagnetic energy to radiate into free space.
At the same time, the transition from the waveguide to free space is generally not perfectly matched. Some energy may therefore be reflected back into the waveguide.
This relationship between radiation and reflection is an important part of aperture antenna design.
A simple open-ended waveguide can function as an antenna, but its radiation efficiency, impedance match, gain, and beam characteristics may not be optimal for every application. Engineers can modify the aperture geometry to obtain better performance. One of the most familiar examples is the horn antenna, in which the waveguide gradually expands toward the aperture.
3. Operating Frequency of Aperture Antennas
There is no single universal operating frequency range for all aperture antennas.
The usable frequency range of a waveguide-based aperture antenna is primarily determined by the waveguide dimensions, waveguide type, supported propagation modes, and cutoff frequencies.
Different standardized waveguide sizes are therefore used for different microwave and millimeter-wave frequency bands.
This is especially important in high-frequency RF systems. As frequency increases and wavelength becomes shorter, waveguide and aperture dimensions also become smaller, allowing aperture antennas to be used effectively in microwave, millimeter-wave, and even sub-THz systems.
4. Radiation Pattern of an Aperture Antenna
The radiation pattern of an aperture antenna depends strongly on the aperture size, field distribution, operating mode, wavelength, and surrounding structure.
An open-ended waveguide generally produces a relatively broad beam, but it should not automatically be described as an omnidirectional antenna. Its E-plane and H-plane radiation characteristics are determined by the electromagnetic field distribution over the aperture.
The surrounding flange can also influence the resulting radiation pattern because fields diffracted from its edges contribute to the total radiated field. Modern analytical studies explicitly account for both aperture radiation and flange-edge diffraction when calculating far-field behavior.
Increasing the effective aperture size can generally provide higher directivity and a narrower main beam, which is one reason horn antennas and larger aperture structures are commonly used when higher gain is required.

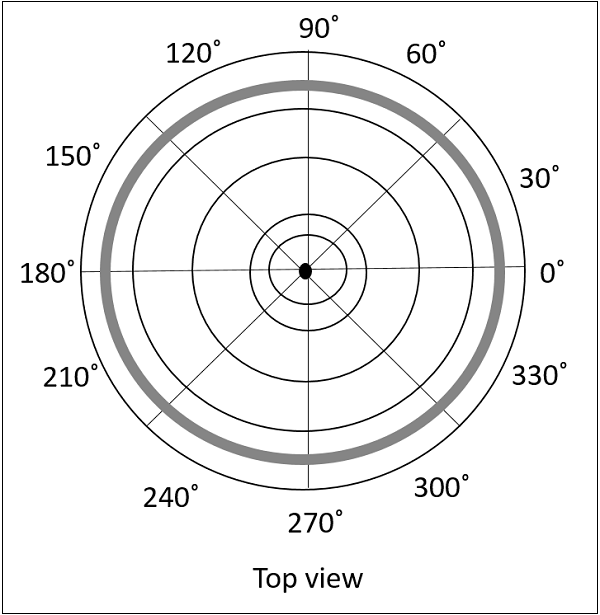

Non-Directive Radiation Pattern
5. Main Types of Aperture Antennas
Open-Ended Waveguide Antenna
An open-ended waveguide is one of the simplest aperture radiators. Its compact structure and direct compatibility with waveguide systems make it useful in microwave and millimeter-wave laboratories, antenna measurements, probes, feeds, and other RF systems.
Horn Antenna
A horn antenna can be regarded as a waveguide whose cross section gradually expands toward the radiating aperture. This gradual transition improves the transformation from guided waves to free-space radiation and can provide better impedance matching, higher gain, and more controlled radiation patterns.
Horn antennas are widely used in antenna measurement, EMC testing, radar, communication systems, feed systems, and millimeter-wave applications.
Slot Antenna
A slot antenna uses an opening or slot cut into a conducting surface to radiate electromagnetic energy. Depending on the slot geometry, excitation, and surrounding structure, slot antennas can be implemented individually or combined into arrays.
They are widely used in microwave systems where low-profile structures, integration, or array configurations are required.
6. Aperture Antennas in RF and Microwave Engineering
Because aperture antennas integrate naturally with waveguide transmission structures, they are particularly important at microwave and millimeter-wave frequencies.
Typical applications include:
- Antenna gain and radiation pattern measurement
- EMC and EMI testing
- Radar systems
- Microwave and millimeter-wave communication
- Antenna feed systems
- RF laboratory measurement
- Directional transmission and reception
- Test and calibration systems
For antenna engineers, selecting an appropriate aperture antenna requires more than simply considering frequency. Parameters such as gain, beamwidth, polarization, VSWR, waveguide size, flange type, power handling, and mechanical dimensions may all influence system performance.
Conclusion
Aperture antennas provide an efficient way to transform guided electromagnetic energy into free-space radiation, making them a fundamental antenna category in microwave and millimeter-wave engineering.
From simple open-ended waveguides to optimized horn and slot structures, aperture antennas can be designed for different combinations of gain, beamwidth, polarization, frequency range, and system integration requirements.
Understanding how aperture size, electromagnetic field distribution, waveguide modes, and surrounding structures affect radiation performance is therefore essential when selecting or designing antennas for RF testing, communication, radar, and measurement systems.
