A short dipole antenna is one of the basic models used in antenna theory. It is a simple linear wire antenna whose total length is much smaller than the wavelength of the operating signal. Although the structure looks very simple, the short dipole is an important reference model for understanding current distribution, radiation behavior, antenna impedance, and the relationship between antenna size and wavelength.
In antenna engineering, a dipole is usually considered “short” when its total length is less than one-tenth of the wavelength:
L < \frac{\lambda}{10}
Here, (L) represents the length of the dipole conductor, and (\lambda) represents the wavelength at the operating frequency. This definition is based on electrical length rather than a fixed frequency range. In other words, a short dipole can theoretically appear in different frequency bands as long as its physical length remains much smaller than the wavelength.
Because the antenna is electrically short, the current distribution along the conductor is different from that of a half-wave dipole. In a practical short dipole, the current is usually maximum near the feed point and decreases toward the ends of the conductor. Since the conductor length is much shorter than the wavelength, the antenna does not use its physical size very efficiently for radiation. As a result, short dipoles generally have low radiation resistance and relatively low radiation efficiency, especially when conductor loss and matching loss are considered.
A related theoretical model is the infinitesimal dipole. An infinitesimal dipole is an idealized antenna whose length is far smaller than the wavelength. It is often expressed as:
[\Delta l \ll \lambda]
In some simplified antenna models, the infinitesimal dipole may be assumed to have a nearly uniform current distribution. This makes it useful for theoretical analysis, even though it is not a practical antenna structure by itself. Engineers often use the infinitesimal dipole as a building block for understanding more complex antenna radiation problems.
In real antenna structures, capacitive loading plates or top-loading elements may be used to improve current distribution or reduce the physical size of an antenna system. These loading structures can help make an electrically short antenna more usable, but they do not change the basic fact that a short dipole is less efficient than a resonant antenna such as a half-wave dipole.

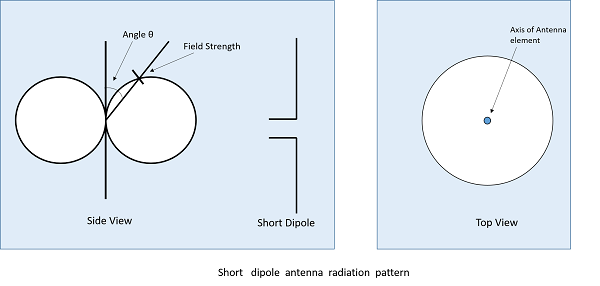

The radiation pattern of a short dipole is similar in shape to that of a half-wave dipole. If the dipole is placed vertically, its radiation pattern is approximately omnidirectional in the horizontal plane. In a two-dimensional view, the pattern is often described as a figure-eight shape, with maximum radiation perpendicular to the axis of the antenna and minimum radiation along the antenna axis.
Short dipole antennas are commonly discussed in low-frequency and medium-frequency receiving systems, where the wavelength is very long and a physically resonant antenna may be too large to build. In these cases, the short dipole provides a compact receiving structure, although impedance matching and efficiency must be carefully considered.
From an engineering perspective, the short dipole is more than a simple antenna form. It helps explain why antenna length matters, how current distribution affects radiation, and why electrically small antennas often require matching networks or loading techniques. For RF and microwave engineers, understanding the short dipole provides a useful foundation for studying practical antennas, electrically small antennas, measurement antennas, and more advanced antenna systems.
