What Is a Full-Wave Dipole Antenna?
A full-wave dipole antenna is a linear dipole antenna whose total conductor length is approximately equal to one wavelength at the operating frequency. In other words, if the wavelength is represented by λ, the overall length of the dipole is about λ.
Compared with a half-wave dipole, a full-wave dipole has a more complex current and voltage distribution along the conductor. This difference directly affects its input impedance, radiation pattern, and practical application performance.

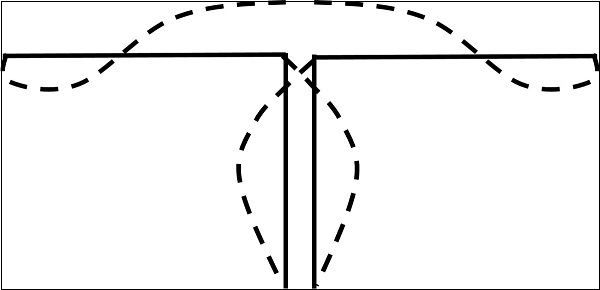

Current and Voltage Distribution
n a full-wave dipole, the conductor can be regarded as two half-wavelength sections connected together. Along the antenna, the current distribution changes phase, meaning that different parts of the conductor may carry currents in opposite directions at the same instant.
Because of this phase relationship, the electromagnetic fields radiated by different sections of the antenna may reinforce each other in some directions while partially cancelling each other in other directions. This is one of the key reasons why the radiation behavior of a full-wave dipole is different from that of a half-wave dipole.
Radiation Characteristics of a Full-Wave Dipole
A full-wave dipole does not simply produce the same radiation pattern as a half-wave dipole. In a half-wave dipole, the radiation is typically strongest in the broadside direction. However, for a full-wave dipole, phase cancellation can reduce radiation in certain directions and cause the radiation pattern to split into multiple lobes.
This means that a full-wave dipole can radiate electromagnetic energy, but its radiation pattern is usually less simple and less convenient for many practical antenna applications. In addition, the feed point impedance of a center-fed full-wave dipole can be relatively high, which makes impedance matching more difficult.
Why Full-Wave Dipoles Are Not Commonly Used
Although the full-wave dipole is useful for understanding antenna current distribution and radiation behavior, it is not commonly used as a standard practical antenna. There are several reasons for this.
First, its radiation pattern is more complex than that of a half-wave dipole. For applications requiring a predictable and simple radiation pattern, a half-wave dipole is usually easier to design and use.
Second, the input impedance of a full-wave dipole may be difficult to match with common transmission lines. Poor impedance matching can lead to increased reflection, reduced power transfer, and lower system efficiency.
Third, the radiation from different parts of the antenna may partially cancel in some directions. This makes the antenna less suitable when a strong and stable main radiation direction is required.
Engineering Significance
From an engineering perspective, the full-wave dipole is more important as a theoretical model than as a widely used practical antenna. It helps engineers understand how antenna length, current phase, feed position, and electromagnetic field distribution affect radiation performance.
In real RF and microwave systems, antenna selection usually depends on the required frequency range, gain, polarization, impedance matching, radiation pattern, and installation conditions. For many high-frequency measurement and communication applications, horn antennas, waveguide antennas, and other specialized antenna structures are often preferred because they provide more stable and controllable performance.
Conclusion
A full-wave dipole is a dipole antenna with an overall conductor length of approximately one wavelength. Due to the phase reversal of current along the conductor, its radiation behavior is more complex than that of a half-wave dipole. Although it can radiate electromagnetic energy, its radiation pattern and impedance characteristics make it less commonly used in practical antenna systems.
Understanding the full-wave dipole is still valuable for antenna theory, because it shows how wavelength, current distribution, and phase relationship influence antenna radiation. This knowledge is useful for RF engineers, antenna designers, and microwave system developers when analyzing more advanced antenna structures.
