An isotropic antenna is an ideal reference source that radiates electromagnetic energy equally in every direction. Engineers use it to compare antenna gain, directivity and radiated power, even though a perfectly isotropic antenna cannot be built in practice.
This guide explains the meaning of isotropic radiation, the shape of an isotropic radiation pattern, why the reference gain is 0 dBi, and how the same reference is used in EIRP calculations.
What Is an Isotropic Antenna?
An isotropic antenna, also called an isotropic radiator, is a theoretical point source with the same radiation intensity for every azimuth and elevation angle. It has no preferred direction and therefore provides a neutral baseline for describing the directional behavior of real antennas.
- It is an ideal mathematical reference, not a realizable physical antenna.
- Its radiation intensity is constant over the complete solid angle around the source.
- Its directivity is 1, which is 0 dBi.
- Practical antenna gain stated in dBi is measured relative to this reference.
What Does the Isotropic Radiation Pattern Look Like?
The ideal three-dimensional isotropic radiation pattern is a sphere centered on the source. Every point on that sphere represents the same radiation intensity at the same distance. Any two-dimensional plane passing through the center produces a circular pattern.
This spherical pattern makes the isotropic radiator useful in antenna theory: it provides the average radiation level against which a real antenna's directivity can be compared. A practical antenna always has a physical structure, feed arrangement and surrounding environment that introduce directional variation, so its measured pattern may contain main lobes, side lobes and nulls.
Reference pattern: In three dimensions, isotropic radiation is spherical. Omnidirectional radiation is only uniform around a selected plane.
Key distinction: a spherical isotropic pattern is not the same as the doughnut-shaped pattern commonly associated with dipole and other omnidirectional antennas.

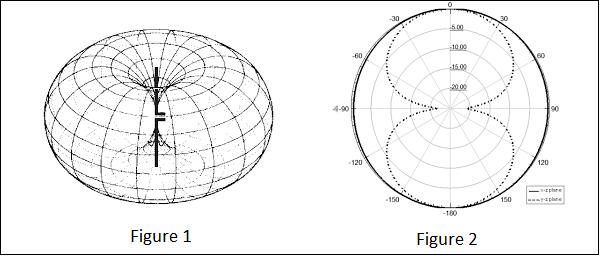

The existing illustration above shows a typical omnidirectional, dipole-like pattern: approximately uniform in azimuth, doughnut-shaped in three dimensions and figure-eight-shaped in a vertical cut. It is useful for comparison, but it is not the spherical pattern of an isotropic radiator.
Isotropic vs. Omnidirectional Antenna
The terms isotropic and omnidirectional are sometimes used loosely, but they describe different radiation behavior.
- Isotropic antenna: radiates equally in every direction in three dimensions. It is a theoretical reference with a spherical pattern.
- Omnidirectional antenna: radiates approximately equally around one reference plane, usually the horizontal azimuth plane, while its radiation varies with elevation.
- Typical omnidirectional pattern: circular in the horizontal plane and figure-eight-shaped in a vertical plane, creating a doughnut-shaped three-dimensional pattern.
An omnidirectional antenna may provide 360-degree azimuth coverage, but it is not isotropic because it normally has weaker radiation or nulls along its axis.
Why Is Isotropic Antenna Gain 0 dBi?
The ideal isotropic radiator has a directivity of 1 because it does not concentrate power in any direction. Expressed on a logarithmic scale, this reference is:
10 log10(1) = 0 dBi
The suffix “i” means that the value is referenced to an isotropic radiator. A real antenna rated at 3 dBi produces about twice the power density in its peak direction compared with the isotropic reference when the comparison uses the same accepted power. It does not mean that the isotropic radiator itself has 3 dBi gain.
For related fundamentals, see antenna directivity and antenna efficiency and gain.
How EIRP Uses the Isotropic Reference
Equivalent isotropically radiated power, or EIRP, expresses the power that an ideal isotropic radiator would need to produce the same maximum power density as the actual transmitting system in a specified direction. In logarithmic units:
EIRP (dBm) = transmitter power (dBm) + antenna gain (dBi) - feeder losses (dB)
This relationship combines transmitter output, antenna gain relative to isotropic and losses from cables, connectors or other feed components. EIRP is therefore a system-level quantity, not an additional power generated by the antenna.
ERP vs. EIRP
EIRP uses the isotropic radiator as its reference. Effective radiated power, or ERP, uses a half-wave dipole as its reference. An ideal half-wave dipole has approximately 2.15 dBi gain in its maximum-radiation direction, so the two quantities differ by 2.15 dB.
ERP (dBW) = EIRP (dBW) - 2.15 dB
For example, a system with an EIRP of 30 dBW has an ERP of 27.85 dBW. Always check whether an antenna or regulatory limit is stated in dBi/dBW EIRP or dBd/dBW ERP before comparing values.
To understand how real antennas distribute energy into lobes and nulls, continue with our guide to antenna radiation patterns.
Practical Takeaways
- An isotropic antenna is an ideal point-source reference, not a practical antenna design.
- Its three-dimensional radiation pattern is spherical, and every central two-dimensional cut is circular.
- Its reference directivity and gain are 1, or 0 dBi.
- An omnidirectional antenna is uniform only in a selected plane and typically has a doughnut-shaped three-dimensional pattern.
- EIRP is referenced to isotropic gain, while ERP is referenced to a half-wave dipole.
