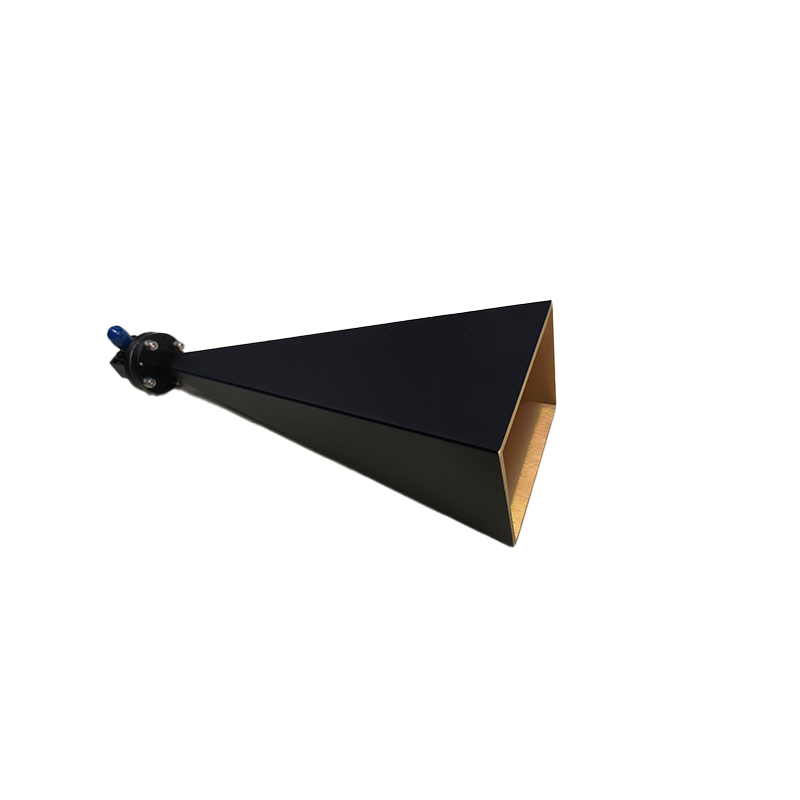

Standard Gain Horn Antennas

Available from 1 to 500GHz
RF Miso Standard gain horn antennas adopt linear polarization, providing an efficient andeconomical method for measurement These horn antennas can be widely used in EMIdetection, orientation, reconnaissance, antenna gain and pattern measurement and otherapplications. This series of horn antennas has the characteristics of high gain, Iow VswR, and lightappearance.

Note : Connectors can be matched according to your needs, please contact RF Miso

  • Table list view
  • Grid view
  • ModelFrequency,min.(GHz)Frequency,max.(GHz)Gain,Typ.(dBi)Polarization3dB Beamwidth, E-Plane(Deg.)3dB Beamwidth,H-Plane(Deg.)VSWR,Typ.RF Ports LINK
    RM-SGHA34-1521.73315Linear26.8-39.126.3-38.1 1.3 WR34
    circle
    ModelFrequency,min.(GHz)Frequency,max.(GHz)Gain,Typ.(dBi)Polarization3dB Beamwidth, E-Plane(Deg.)3dB Beamwidth,H-Plane(Deg.)VSWR,Typ.RF Ports LINK
    RM-SGHA28-1526.54015Linear26.8-39.126.1-38 1.3 WR28
    circle
    ModelFrequency,min.(GHz)Frequency,max.(GHz)Gain,Typ.(dBi)Polarization3dB Beamwidth, E-Plane(Deg.)3dB Beamwidth,H-Plane(Deg.)VSWR,Typ. LINK
    RM-SGHA1218-10121810Linear34-50.438.7-52.5 1.2
    circle
    ModelFrequency,min.(GHz)Frequency,max.(GHz)Gain,Typ.(dBi)PolarizationVSWR,Typ.RF Ports LINK
    RM-SGHA340-152.23.315Linear 1.3 WR340
    circle
    ModelFrequency,min.(GHz)Frequency,max.(GHz)Gain,Typ.(dBi)Polarization3dB Beamwidth, E-Plane(Deg.)3dB Beamwidth,H-Plane(Deg.)VSWR,Typ.RF Ports LINK
    RM-SGHA42-2017.626.720Linear14.6-2115.1-21.9 1.3 WR42
    circle
    ModelFrequency,min.(GHz)Frequency,max.(GHz)Gain,Typ.(dBi)Polarization3dB Beamwidth, E-Plane(Deg.)3dB Beamwidth,H-Plane(Deg.)VSWR,Typ.RF Ports LINK
    RM-SGHA34-1021.73310Linear42.2-63.443.4-59.9 1.3 WR34
    circle
    ModelFrequency,min.(GHz)Frequency,max.(GHz)Gain,Typ.(dBi)Polarization3dB Beamwidth, E-Plane(Deg.)3dB Beamwidth,H-Plane(Deg.)VSWR,Typ.RF Ports LINK
    RM-SGHA34-25223325Linear7.6-10.28.6-11 <1.2 WR34
    circle
    ModelFrequency,min.(GHz)Frequency,max.(GHz)Gain,Typ.(dBi)Polarization3dB Beamwidth, E-Plane(Deg.)3dB Beamwidth,H-Plane(Deg.)VSWR,Typ.RF Ports LINK
    RM-SGHA15-25507525Linear8.7-117.2-10.6 1.1 WR15
    circle
    ModelFrequency,min.(GHz)Frequency,max.(GHz)Gain,Typ.(dBi)Polarization3dB Beamwidth, E-Plane(Deg.)3dB Beamwidth,H-Plane(Deg.)VSWR,Typ.RF Ports LINK
    RM-SGHA10-157511015Linear33.46-41.7229.5-39.17 1.15 WR10
    circle
    ModelFrequency,min.(GHz)Frequency,max.(GHz)Gain,Typ.(dBi)Polarization3dB Beamwidth, E-Plane(Deg.)3dB Beamwidth,H-Plane(Deg.)VSWR,Typ.RF Ports LINK
    RM-SGHA10-207511020Linear11.7-15.811.8-16 1.1 WR10
    circle
    ModelFrequency,min.(GHz)Frequency,max.(GHz)Gain,Typ.(dBi)Polarization3dB Beamwidth, E-Plane(Deg.)3dB Beamwidth,H-Plane(Deg.)VSWR,Typ.RF Ports LINK
    RM-SGHA770-150.951.4515 Linear26.6°26.6° 1.2 WR770
    circle
    ModelFrequency,min.(GHz)Frequency,max.(GHz)Gain,Typ.(dBi)Polarization3dB Beamwidth, E-Plane(Deg.)3dB Beamwidth,H-Plane(Deg.)VSWR,Typ.RF Ports LINK
    RM-SGHA650-1511.815 Linear33.41°31.03° 1.2 WR650
    circle
    123456 Next > >> Page 1 / 6
