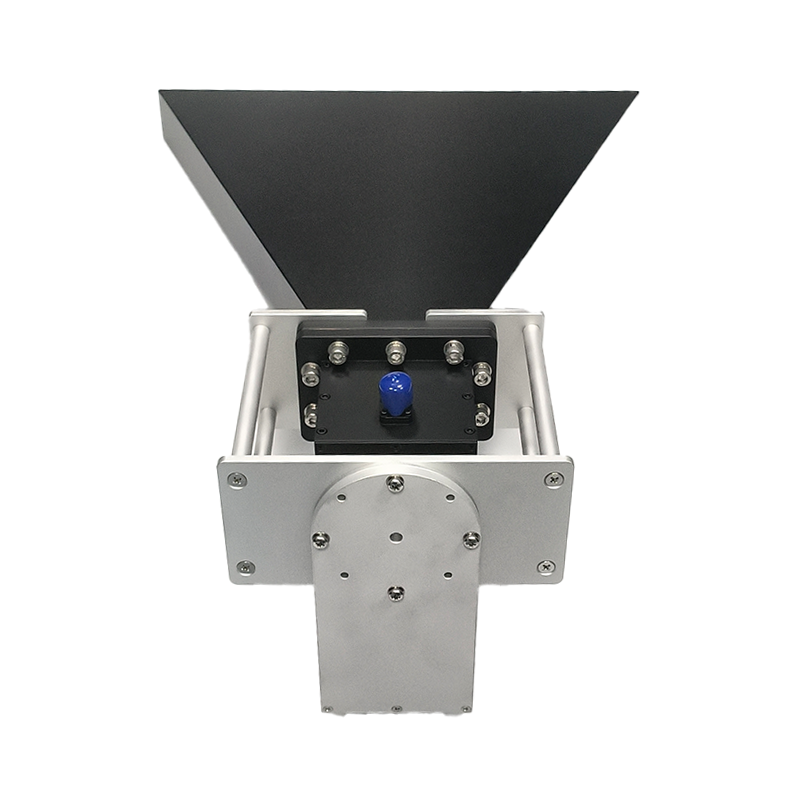

Sector Waveguide Horn Antennas

Available from 1 to 500GHz
RF Miso Standard gain horn antennas adopt linear polarization, providing an efficient andeconomical method for measurement These horn antennas can be widely used in EMIdetection, orientation, reconnaissance, antenna gain and pattern measurement and otherapplications. This series of horn antennas has the characteristics of high gain, Iow VswR, and lightappearance.

Note : Connectors can be matched according to your needs, please contact RF Miso

  • Table list view
  • Grid view
  • Model Frequency,min.(GHz) Frequency,max.(GHz) Gain,Typ.(dBi) Polarization 3dB Beamwidth, E-Plane(Deg.) 3dB Beamwidth,H-Plane(Deg.) VSWR,Typ. Connector LINK
    RM-SWHA28-10 26.5 40 10 Linear / / 1.2 /
    circle
    Model Frequency,min.(GHz) Frequency,max.(GHz) Gain,Typ.(dBi) Polarization 3dB Beamwidth, E-Plane(Deg.) 3dB Beamwidth,H-Plane(Deg.) VSWR,Typ. Connector LINK
    RM-SWHA284-13 2.6 3.9 13 Linear / / 1.5 /
    circle
    Model Frequency,min.(GHz) Frequency,max.(GHz) Gain,Typ.(dBi) Polarization 3dB Beamwidth, E-Plane(Deg.) 3dB Beamwidth,H-Plane(Deg.) VSWR,Typ. Connector LINK
    RM-SWHA187-10 3.95 5.85 10 Linear / / 1.2 /
    circle
