A Circular Polarization Horn Antenna is a specialized type of microwave antenna designed to radiate or receive electromagnetic waves with circular polarization. Unlike linear polarization, where the electric field oscillates in a single plane, circular polarization features an electric field vector that rotates continuously as the wave propagates, tracing a helical pattern. This unique characteristic offers significant advantages in various challenging communication and sensing environments.
Key Advantages of Circular Polarization
1. Immunity to Polarization Misalignment
In linear polarization systems, transmitter and receiver antennas must be precisely aligned in their polarization planes to avoid signal loss. Circular polarization eliminates this requirement. A circularly polarized wave maintains consistent signal strength regardless of the receiving antenna's orientation—a critical advantage for mobile satellite communications, where vehicle motion constantly changes antenna attitude.

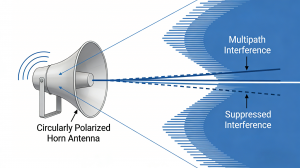

2. Mitigation of Multipath Interference
When a circularly polarized wave reflects off a surface (such as water, buildings, or the ground), its polarization handedness reverses (e.g., right-hand becomes left-hand). Receiving antennas designed for one handedness naturally reject the opposite handedness, effectively canceling reflected signals that cause multipath fading. This property is invaluable in GPS receivers and urban communication links.
3. Penetration through Atmospheric Effects
Circular polarization exhibits superior resistance to Faraday rotation—a phenomenon where the Earth's magnetic field rotates the polarization plane of linearly polarized waves passing through the ionosphere. By eliminating sensitivity to polarization rotation, circular polarization ensures stable signal transmission in satellite-to-ground links and deep-space communications.
4. Enhanced Performance in Adverse Weather
Rain, fog, and snow cause less attenuation to circularly polarized waves compared to linear polarization at certain frequencies, making circular polarization the preferred choice for radar systems and communication links operating in regions with heavy precipitation.
Horn Antenna Implementation

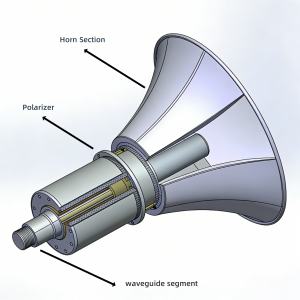

Circular polarization in horn antennas is typically achieved through integrated polarizers—mechanical structures such as dielectric slabs, corrugations, or septum polarizers placed within the waveguide feed. These components convert linearly polarized input into circularly polarized output with high purity and low insertion loss.
Common Applications
•Satellite Communications：Ground terminals and spaceborne antennas rely on circular polarization to maintain link stability despite satellite motion and atmospheric effects.
•Global Navigation Satellite Systems (GNSS) : GPS, BeiDou, and Galileo signals use circular polarization to ensure reliable positioning in urban canyons and multipath-rich environments.
•Radar Systems ：Weather radar and target tracking radar benefit from circular polarization's ability to distinguish between rain clutter and genuine targets.
•Electronic Warfare & Reconnaissance: Circular polarization enables robust intercept capabilities regardless of the target signal's polarization state.
•RFID & Wireless Power Transfer: Ensures consistent communication with tags in random orientations.
Circular polarization horn antennas represent a mature yet continuously evolving technology, delivering unmatched robustness in real-world propagation environments. At RFMiso, we combine precision engineering with advanced polarization control to offer high-performance solutions tailored to the most demanding applications in aerospace, defense, and telecommunications.

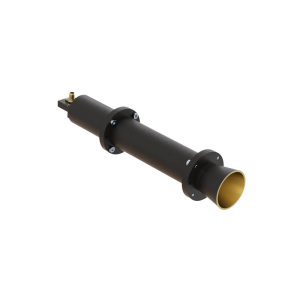

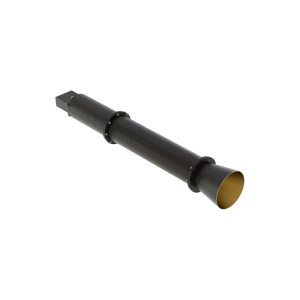

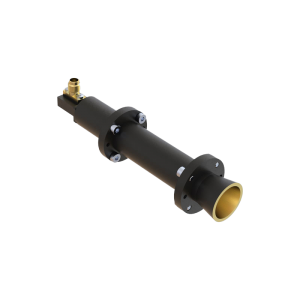

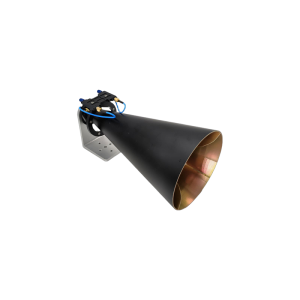

Discover RFMiso's Premium Circular Polarized Horn Antennas：
RM-CPHA818-13
RM-CPHA1840-12
RM-CPHA09225-13
RM-CPHA218-16
RM-CPHA82124-15

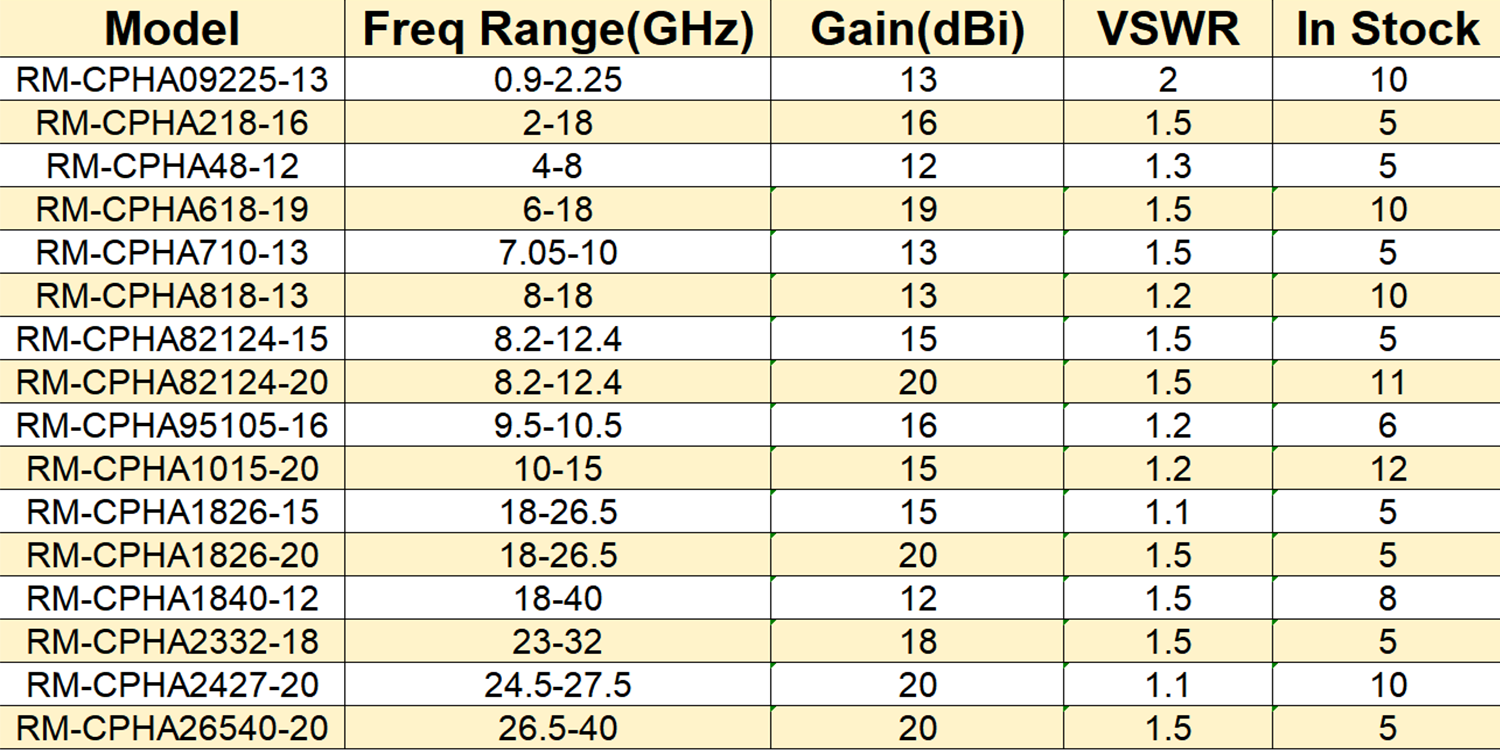

Discover Additional Models Available from Stock：
