Ask any antenna engineer about wideband performance, and chances are planar spiral antennas will come up early in the conversation. These flat, circular structures—with arms that curve outward like a fingerprint or a galaxy—have been solving bandwidth problems since the 1950s. And they're still at it today.

What Is a Planar Spiral Antenna?

At its simplest, a planar spiral antenna consists of two or more metallic arms etched onto a thin dielectric substrate, spiraling outward from a central feed point. Two designs dominate: the Archimedean spiral, where arms spread at a constant rate, and the logarithmic spiral, where the curve grows exponentially. Both achieve the same goal—extremely wide bandwidth—but through slightly different geometry.

The key lies in something called the "active region" concept. At a given frequency, only a specific ring-like zone of the spiral—where the circumference matches the wavelength—actively radiates. Change the frequency, and the active region simply moves inward or outward along the arms. The antenna doesn't care what frequency you throw at it; it just keeps working.

Why Choose a Planar Spiral?

1. Ultra-Wideband Performance

This is the headline feature. A well-designed spiral can operate over frequency ratios of 10:1 or even 20:1—from a few hundred MHz to tens of GHz—with a single feed. For systems that need to cover multiple bands without switching antennas, that's a game changer.

2. Circular Polarization by Nature

Spiral antennas radiate circular polarization inherently. No external polarizers, no extra complexity. This makes them a natural fit for satellite communications, GPS, and any application where polarization mismatch or Faraday rotation is a concern.

3. Low Profile and Lightweight

Because they're printed on thin substrates, planar spirals are flat and light. They can be mounted flush on surfaces, conform to curved structures, or integrated directly into systems where bulk is a problem.

4. Consistent Pattern Across Bandwidth

Unlike some wideband antennas that change their beam shape with frequency, spirals maintain a relatively stable pattern—typically bidirectional beams broadside to the plane. This predictability matters when you're designing around coverage.

Where You'll Find Them

•Electronic Warfare and Surveillance：Systems that need to detect, jam, or intercept signals across a wide spectrum rely on spirals. If you don't know where the threat will come from—or what frequency it will use—you need an antenna that doesn't care.

•Broadband Monitoring and Test：In EMC labs and spectrum monitoring stations, spirals serve as reliable references for measuring antennas and systems across multiple bands with a single setup.

•Satellite Communications and GPS：The inherent circular polarization and wide bandwidth make spirals a solid choice for ground terminals and spaceborne antennas, especially when multiple frequency bands need to be covered.

•Ground Penetrating Radar：Short pulses mean wide bandwidth. Spirals handle the impulse-like signals used in subsurface imaging without ringing or distortion.

A Thought from the Lab

A colleague once said, "With a spiral, you're trading gain for bandwidth—and most of the time, that's a fair trade." He was right. In a world where signals are unpredictable and frequency allocations keep shifting, having an antenna that just doesn't care about frequency is a luxury worth paying for.

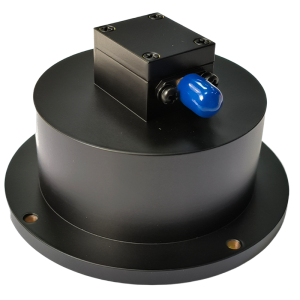

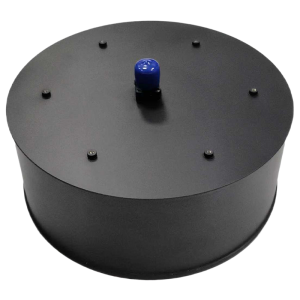

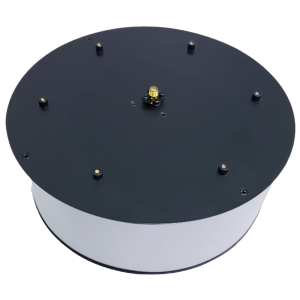

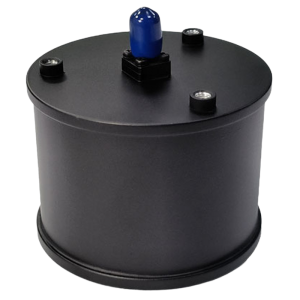

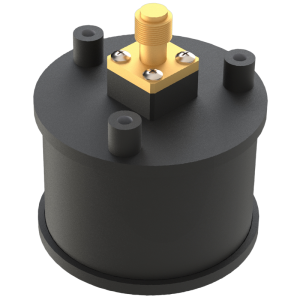

RFMiso Planar Spiral Antennas

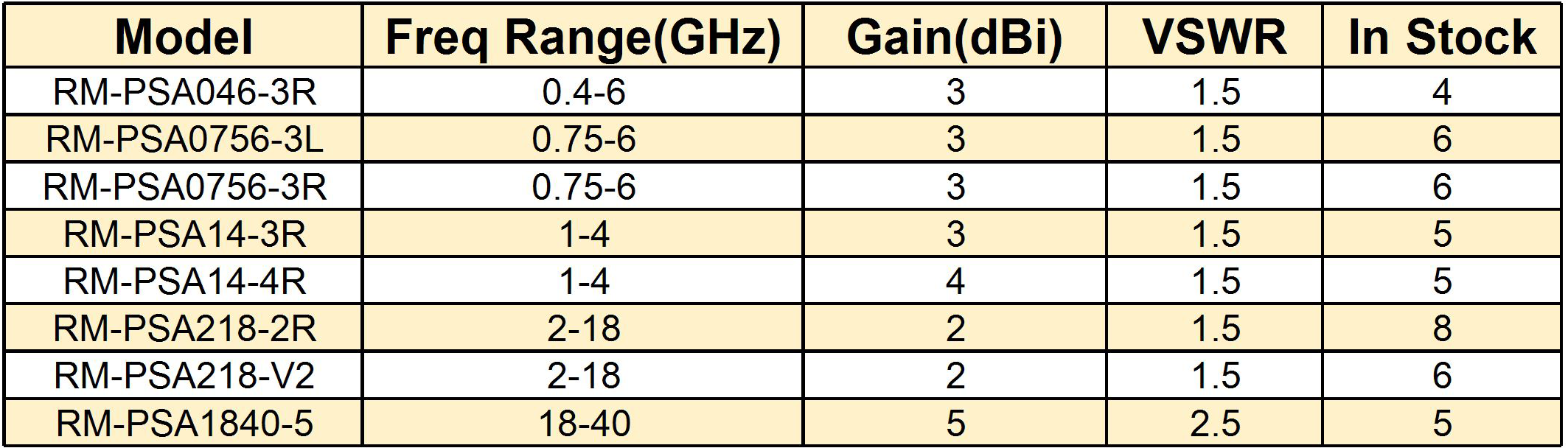

We offer planar spiral antennas covering frequency ranges from UHF to millimeter-wave, with options for cavity backing and custom substrates. Whether you're building an EW system or setting up a broadband monitoring station, we have a design that fits.
