If you've ever stepped into an EMC test lab or worked on wideband monitoring systems, chances are you've encountered a biconical antenna. At first glance, its symmetrical, bow-tie-like shape stands out—two conical elements facing each other, fed at the center. But beyond its distinctive appearance lies a design that solves one of the fundamental challenges in antenna engineering: achieving consistent performance over a very wide frequency range.
How It Works

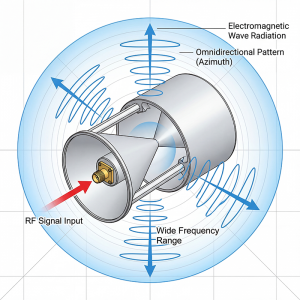

The biconical antenna can be thought of as a flared continuation of a balanced transmission line. Imagine taking a two-wire line and gradually bending the conductors outward until they form cones—that's essentially the concept. This gradual transition from guided wave to free-space wave is what gives the biconical its wideband nature.
Unlike resonant antennas that operate efficiently only near a specific frequency, the biconical's geometry allows it to radiate effectively across multiple octaves. The angle of the cones determines the characteristic impedance, while the length sets the low-frequency limit—longer cones mean lower frequencies.
Key Advantages
1. Ultra-Wideband Operation：This is the biconical's standout feature. A single antenna can cover frequency ratios of 10:1 or more—from tens of MHz to several GHz. For systems that need to monitor, test, or communicate across multiple bands, one biconical can replace several narrowband antennas.
2. Omnidirectional Pattern in H-Plane：In the horizontal plane, the biconical radiates uniformly in all directions—a crucial feature for applications like EMC testing where signals may arrive from any angle, or for broadcast and monitoring systems that need 360° coverage.
3. Consistent Pattern Across Frequency：Unlike some wideband antennas that change their radiation pattern drastically with frequency, well-designed biconicals maintain a stable pattern—a valuable trait when measurement repeatability matters.
4. Simple, Rugged Construction：No complex tuning networks or fragile structures—just metal cones and a feed. This makes biconicals reliable in both lab environments and outdoor field deployments.
Typical Applications
EMC/EMI Testing——This is perhaps the most common application. Biconicals are standard tools for radiated emissions and immunity testing from 30 MHz to 1 GHz and beyond. Their broadband nature allows quick frequency sweeps without antenna changes.
Spectrum Monitoring——For government agencies and telecom operators monitoring the radio spectrum, biconicals provide continuous coverage across multiple bands, catching signals that narrowband antennas might miss.
Broadband Communications——In systems requiring omnidirectional coverage across wide frequency ranges—such as tactical military radios or multi-band data links—biconicals offer a single-antenna solution.
Field Strength Measurement——For site surveys and coverage verification, biconicals' stable patterns and broadband response make them reliable measurement tools.
Design Considerations
Practical biconicals often use wire cones or triangular plates instead of solid metal to reduce weight and wind loading. For outdoor installations, radomes protect against weather. The feed point requires careful design to maintain balance and impedance matching—often achieved with baluns or coaxial feeds with specially shaped center conductors.
The biconical antenna has earned its place as a trusted tool in EMC labs, monitoring stations, and communication systems worldwide. Its elegant solution to the wideband coverage problem—using geometry rather than complex circuitry—reflects a deeper engineering truth: sometimes the simplest shapes do the job best.
At RFMiso, we combine this time-tested design with precision manufacturing and modern materials to deliver biconical antennas that meet today's demanding requirements—whether in the lab or out in the field.
RFMiso Biconical Antennas | Wideband Coverage, Stable Patterns, Ready to Ship：

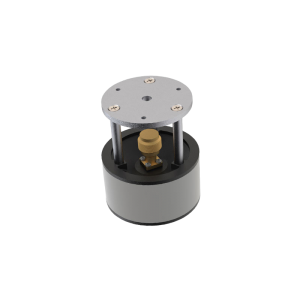

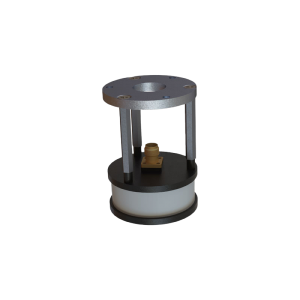

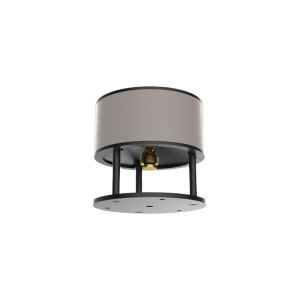

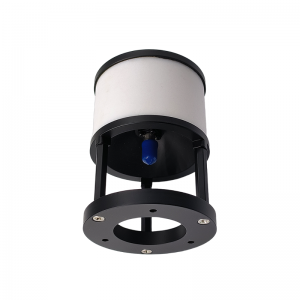

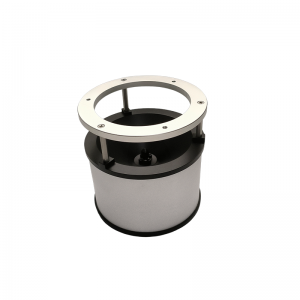

RM-BCA18-2
RM-BCA812-2
RM-BCA107145-4
RM-BCA1730-4
RM-BCA245-3

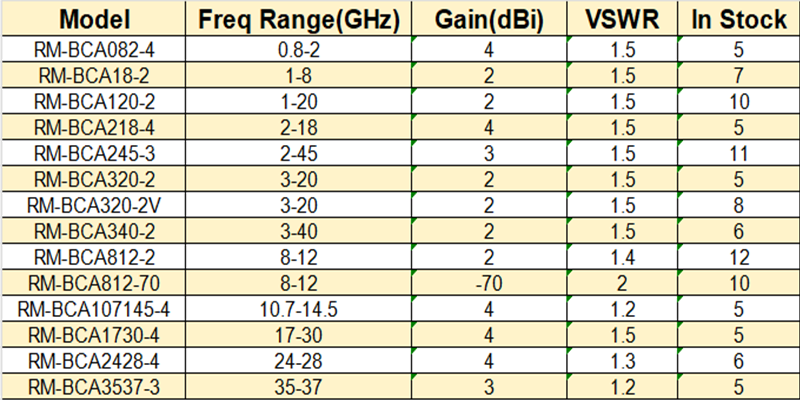

More Models? See Stock List：
