The RM-SGHA28-20 is a linearly polarized, standard-gain horn antenna operating from 26.5 to 40 GHz. It offers a typical gain of 20 dBi and a low 1.3:1 standing wave ratio. Its typical 3dB beamwidth is 17.3 degrees in the E-plane and 17.5 degrees in the H-plane. The antenna offers both flange and coaxial inputs, with customer-selectable rotation. Antenna mounting brackets include standard L-type, I-type, and swivel L-type brackets.

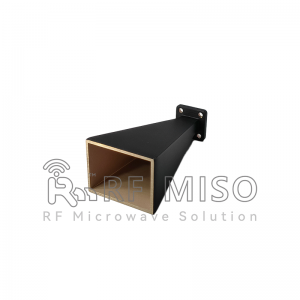

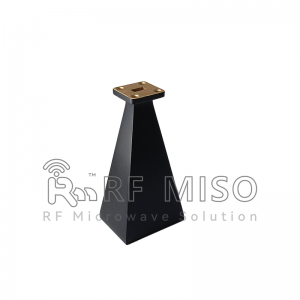

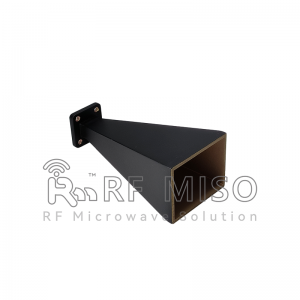

Product photos
Product Parameters
|
Parameters |
Specification |
Unit |
||
|
Frequency Range |
26.5-40 |
GHz |
||
|
Wave-guide |
WR28 |
|||
|
Gain |
20 Typ. |
dBi |
||
|
VSWR |
1.3 Typ. | |||
|
Polarization |
Linear |
|||
|
3 dB Beamwidth, E-Plane |
17.3°Typ. | |||
|
3 dB Beamwidth, H-Plane |
17.5°Typ. | |||
|
Interface |
FBP320(F Type) |
2.92-Female(C Type) |
||
|
Finishing |
Paint |
|||
|
Material |
Al | |||
|
C Type Size (L*W*H) |
96.1*37.8*28.8 (±5) |
mm |
||
|
Weight |
0.023(F Type) |
0.043(C Type) |
kg |
|
|
C Type Average Power |
20 |
W |
||
|
C Type Peak Power |
40 |
W |
||
|
Operating Temperature |
-40°~+85° |
°C |
||
Outline Drawing
F-Type Mechanical Drawing

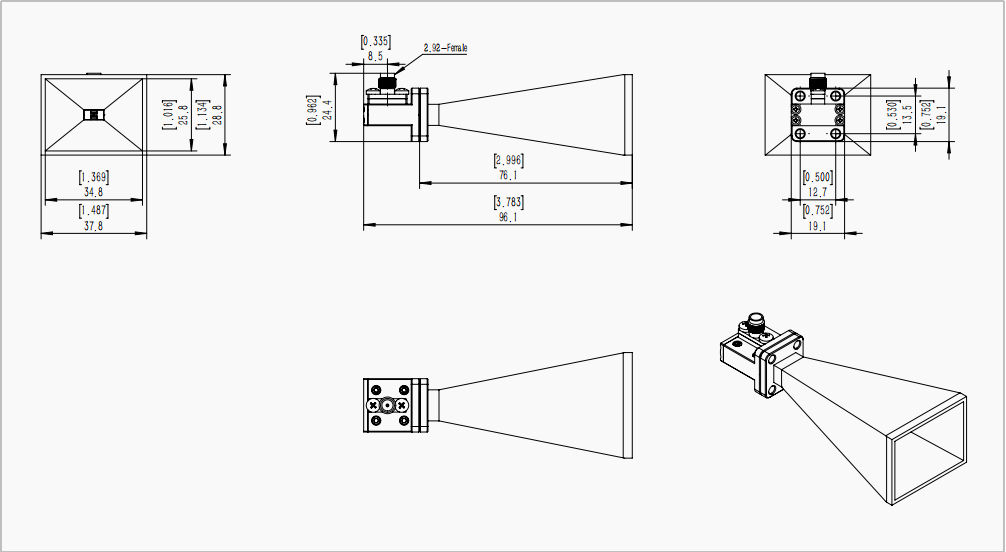

C-Type Mechanical Drawing
Measured data

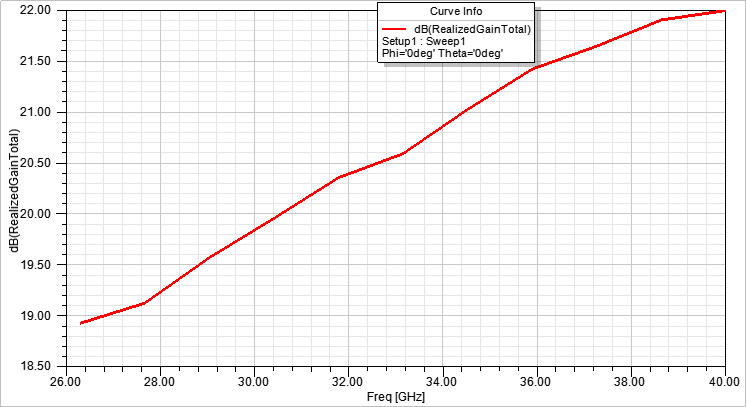

Gain

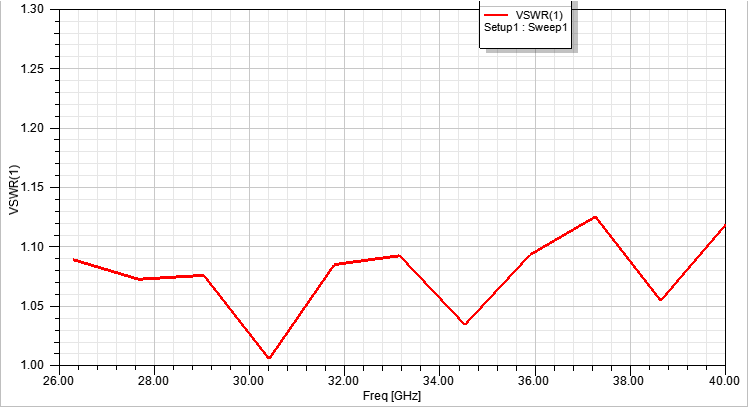

VSWR
