RM-CPHA1840-12 circularly polarized horn antenna, the antenna operates at a frequency of 18-40GHz, has a gain of 10-14dBi and a low standing wave ratio of 1.5, built-in circular polarizer, waveguide converter and conical horn structure, with full-band gain uniformity, symmetrical radiation pattern and high efficiency, suitable for antenna far-field testing and RF radiation testing and other scenarios.

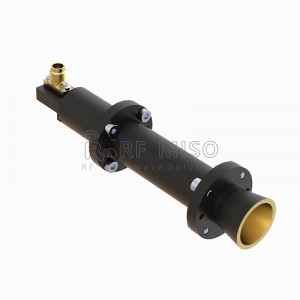

Product photos
Product Parameters
|
RM-CPHA1840-12 |
||
|
Parameters |
Specification |
Unit |
|
Frequency Range |
18-40 |
GHz |
|
Gain |
10-14 |
dBi |
|
VSWR |
1.5 Typ. |
|
|
Polarization |
RHCP or LHCP |
|
|
Interface |
2.92-Female |
|
|
Material |
Al |
|
|
Finishing |
Paint |
|
|
Average Power |
20 |
W |
|
Peak Power |
40 |
W |
|
Size (L*W*H) |
107.91*Ø32 (±5) |
mm |
|
Weight |
0.086 |
kg |
|
In Stock |
10 |
Pcs |

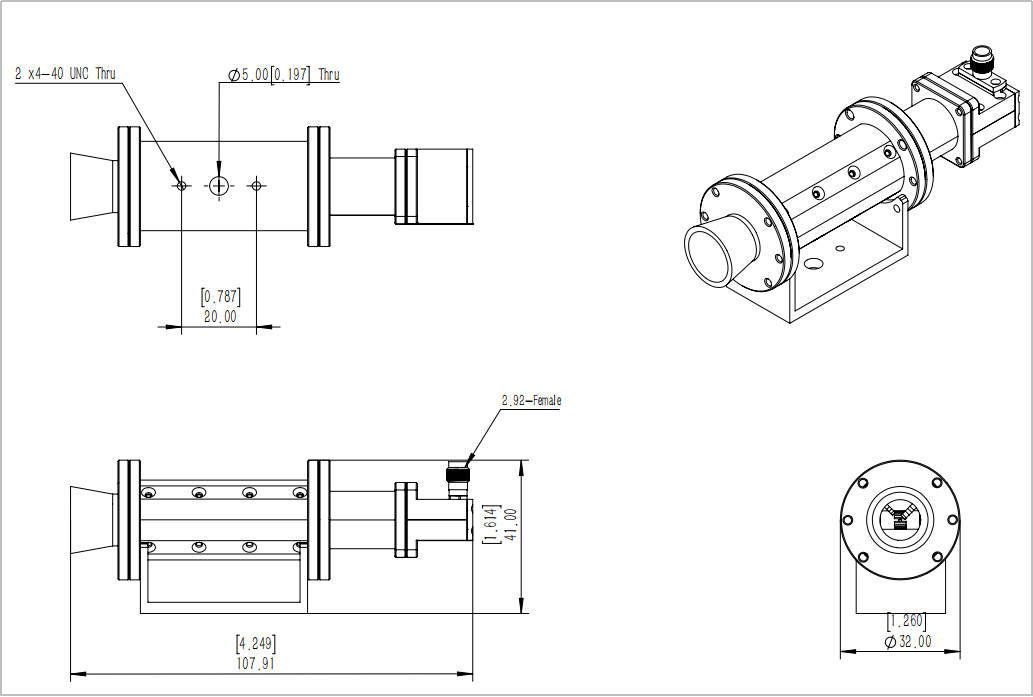

Outline Drawing

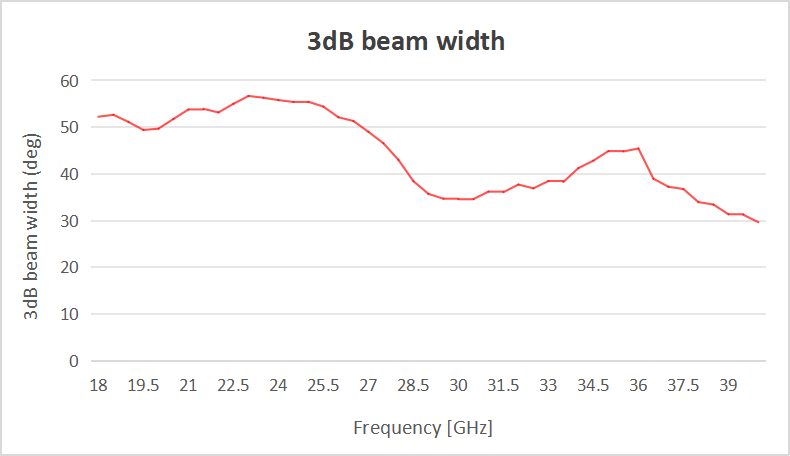

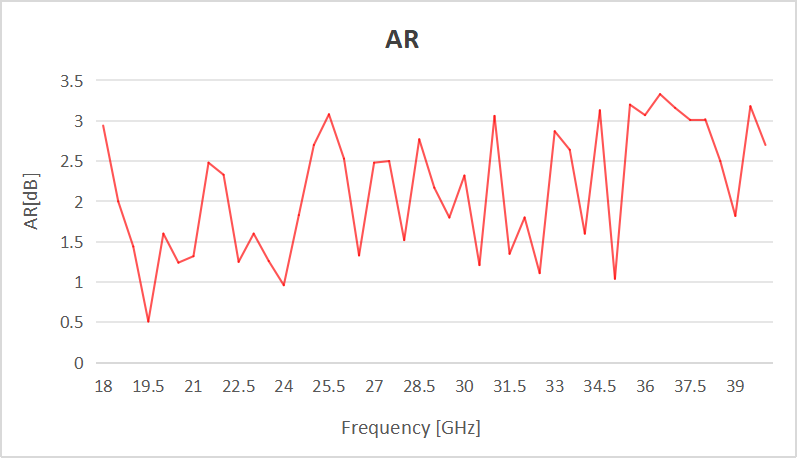

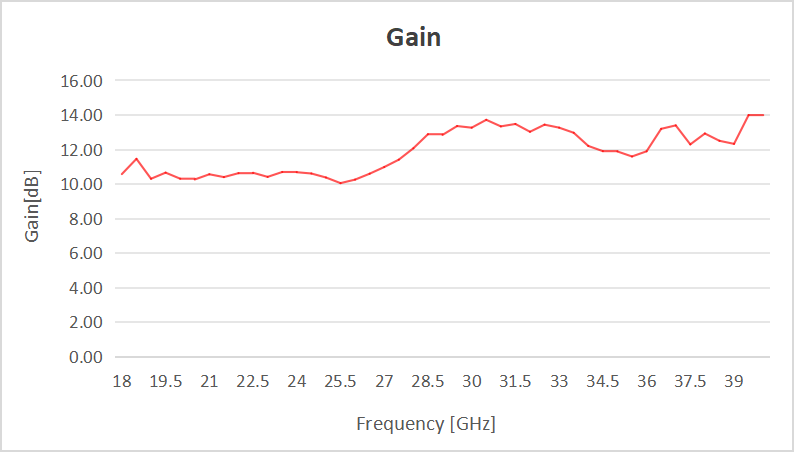

Measured data
