In the field of wireless communication and electromagnetic technology, horn antennas have become core components in many key areas due to their unique structural design and excellent performance. This article will start from seven core application scenarios and deeply analyze the technical advantages of horn antennas and their important value in modern science and technology.
1. Radar system: the core support for accurate detection
Application scenarios
Weather radar: In meteorological monitoring, the high gain and low sidelobe characteristics of the horn antenna play a key role. It can accurately detect meteorological parameters such as precipitation intensity, wind speed and direction, and provide high-precision data support for weather forecasting.
Airport surveillance radar (ASR): As a feed source or independent antenna system, the horn antenna is used for real-time tracking of aircraft takeoff and landing to ensure safe and orderly operation of airport airspace.
Missile guidance radar: Its excellent high-power tolerance makes it an ideal choice for military target tracking, and it can stably achieve accurate locking of high-speed targets in complex electromagnetic environments.
Technical advantages
Wideband adaptability: Supports different radar bands such as X-band and Ku-band to meet diverse detection needs.
Low loss characteristics: It has significant advantages in high-power transmission scenarios, effectively reducing energy loss and improving the overall efficiency of the radar system.

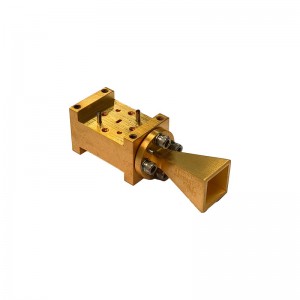

Dual Polarized Horn Antenna（75-110GHz)

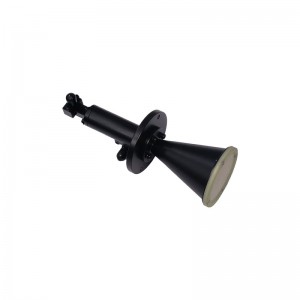

Conical Dual Polarized Horn Antenna(33-37GHz)
2. Satellite communication and ground station: the preferred solution for long-distance signal transmission
Application scenarios
Satellite signal reception: As the core feed source of parabolic antennas, it is widely used in VSAT terminals, satellite TV reception and other scenarios to achieve stable satellite signal access.
Deep space communication: In radio telescopes such as NASA's Deep Space Network (DSN), large horn antennas are responsible for receiving weak cosmic signals, helping deep space exploration and research.
Technical advantages
High gain and low noise: Ensure efficient transmission and reception of long-distance signals and effective extraction of weak signals.
Polarization purity advantage: Significantly reduce signal interference and improve the stability and reliability of communication links.

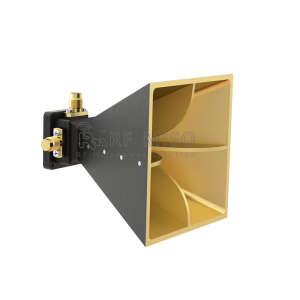

Broadband Dual Polarized Horn Antenna(18-54GHz)
Standard Gain Horn Antenna(2.60-3.95GHz)
3. Microwave measurement and laboratory: standard reference for precise testing
Application scenarios
Antenna testing: as a standard gain antenna, it is used to calibrate the performance parameters of other antennas and provide a precise reference for antenna design and optimization.
Electromagnetic compatibility (EMC) testing: in the radiation interference and sensitivity testing, the advantages of known radiation characteristics are brought into play to ensure that electronic equipment meets the electromagnetic compatibility standards.
Technical advantages
Precise radiation characteristics: with known gain, beam width and other parameters, it is an ideal reference source choice.
Ultra-wide frequency coverage: covers the 1-40 GHz frequency band and adapts to the frequency requirements of various test scenarios.

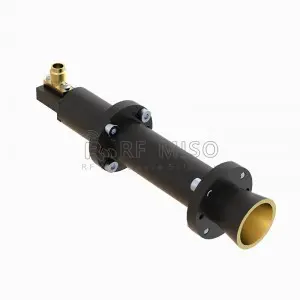

Circularly Polarized Horn Antenna(18-40GHz)

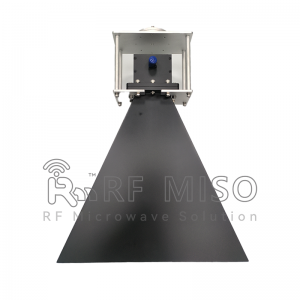

Sectoral Waveguide Horn Antenna(3.95-5.85GHz)
4. Wireless communication system: key carrier of high-frequency band communication
Application scenarios
Millimeter wave communication: In 5G/6G high-frequency band base stations and backhaul links, horn antennas support high-speed transmission of large-capacity data and promote the upgrading of wireless communication technology.
Point-to-point microwave link: Provide fixed wireless access solutions for mountainous and remote areas to achieve stable coverage of network signals.
Technical advantages
High-frequency band support capability: Perfectly adapt to high-frequency band applications such as millimeter waves to meet future high-speed data transmission needs.
Rugged outdoor design: Adapt to complex outdoor environments and ensure long-term stable operation.
5. Radio Astronomy: An Important Tool for Exploring the Universe
Application Scenarios
Cosmic Microwave Background Radiation (CMB) Detection: Helps astronomers capture and analyze early signals from the universe and reveal the mysteries of the origin of the universe.
Astronomical Observation: Used for the observation of celestial signals such as pulsars and neutral hydrogen (21 cm line), providing key data for radio astronomy research.
Technical Advantages
Low sidelobe design: Effectively reduces ground noise interference and improves the reception quality of weak signals from the universe.
Ultra-large size scalability: Through the design of horn reflector antenna, the observation sensitivity is greatly improved to meet the needs of high-precision astronomical detection.
6. Military and electronic warfare: tactical weapons in complex environments
Application scenarios
Electronic countermeasures (ECM): As a jamming signal transmitter, it plays an important role in electronic warfare, interfering with enemy communications and detection systems.
Stealth target detection: Realize the reception of reflected signals from targets such as stealth aircraft, and improve the detection capability of battlefield targets.
Technical advantages
High power capacity: Tolerate strong electromagnetic pulses to ensure stable operation in harsh electromagnetic environments.
Fast beam switching: Combined with phased array technology, it can achieve rapid adjustment of beams to adapt to dynamic tactical needs.
7. Industry and medical treatment: innovative practice of high-efficiency application
Application scenarios
Microwave heating: in industrial drying and medical hyperthermia equipment (such as 2450 MHz medical microwave antenna), efficient energy transmission and controllable heating are achieved.
Nondestructive testing: through microwave imaging technology, material defects are accurately detected to ensure the quality of industrial products.
Technical advantages
Controllable radiation field distribution: accurately control the energy radiation range, avoid leakage risks, and ensure application safety.
Conclusion
From the precise detection of radar systems to the exploration of the universe in radio astronomy, from the long-distance transmission of satellite communications to the innovative application of industrial medicine, horn antennas continue to play an irreplaceable role in many key fields with their core advantages such as wide bandwidth, high gain, and low loss. With the rapid development of technologies such as 5G/6G, millimeter wave communications, and deep space exploration, the application prospects of horn antennas will be broader and become an important force in promoting scientific and technological progress and industrial upgrading.
