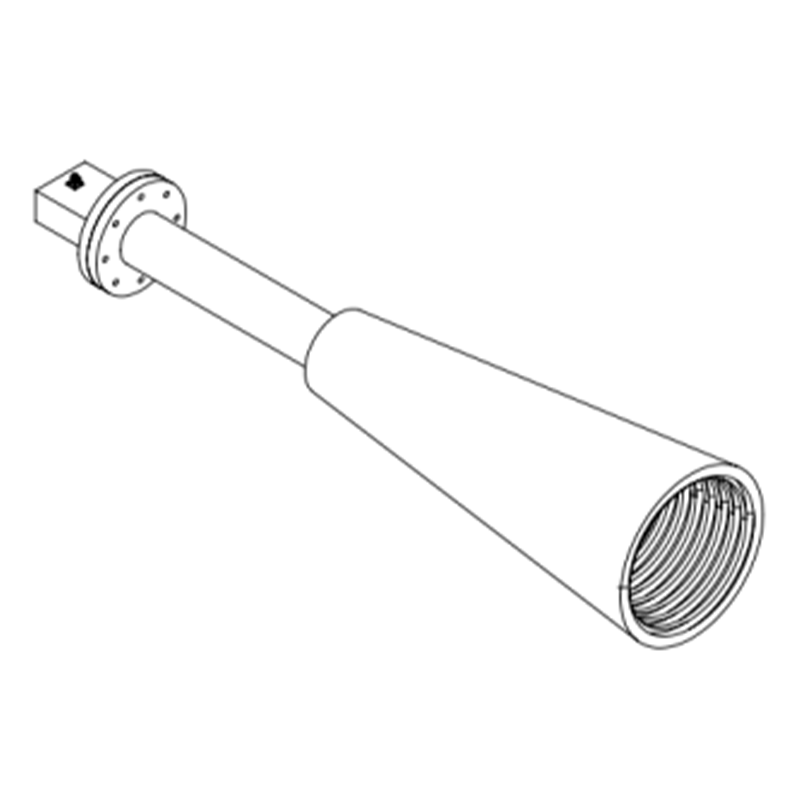

Linear Polarized Corrugated Horn Antennas
Available from 1 to 500GHzRF Miso Standard gain horn antennas adopt linear polarization, providing an
efficient andeconomical method for measurement These horn antennas can be widely used in
EMIdetection, orientation, reconnaissance, antenna gain and pattern measurement and
otherapplications. This series of horn antennas has the characteristics of high gain, Iow VswR,
and lightappearance.
Note : Connectors can be matched according to your needs, please contact RF Miso
-
Table list view
-
Grid view
-
Model Frequency,min.(GHz) Frequency,max.(GHz) Gain,Typ.(dBi) Polarization 3dB Beamwidth, E-Plane(Deg.) 3dB Beamwidth,H-Plane(Deg.) VSWR,Typ. Cross Pol. Isolation,Typ. (dB) Interface LINK RM-CGHA5-22 140 220 22 Linear / / 1.6 / /
Model Frequency,min.(GHz) Frequency,max.(GHz) Gain,Typ.(dBi) Polarization 3dB Beamwidth, E-Plane(Deg.) 3dB Beamwidth,H-Plane(Deg.) VSWR,Typ. Cross Pol. Isolation,Typ. (dB) Interface LINK RM-CGHA610-15 6.5 10.6 15 Linear Vertical / / <1.5 -25min /
