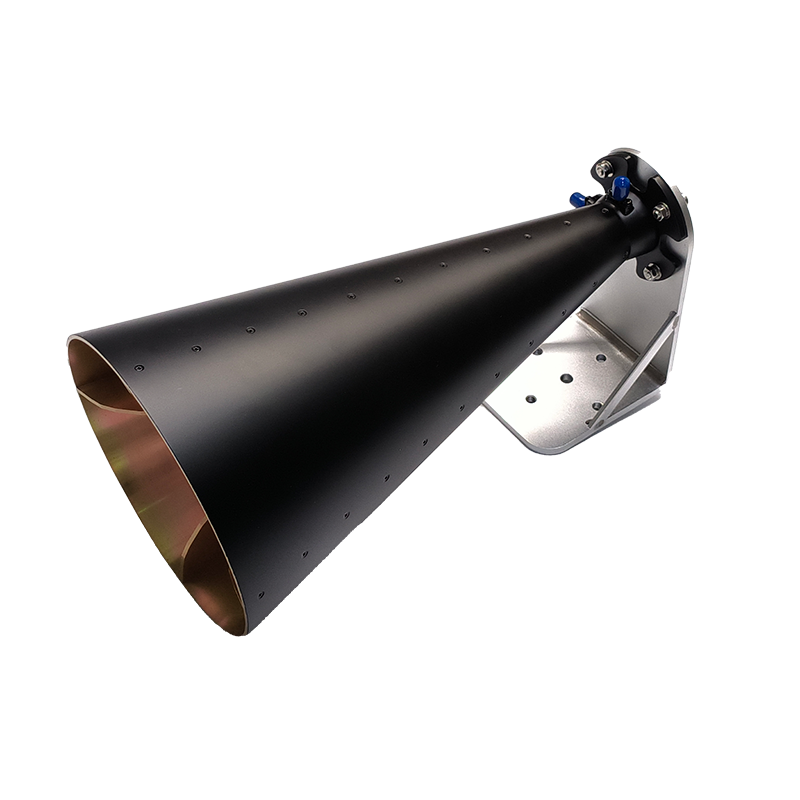

Dual Circular Polarization Horn Antennas

Available from 1 to 500GHz
RF Miso Standard gain horn antennas adopt linear polarization, providing an efficient andeconomical method for measurement These horn antennas can be widely used in EMIdetection, orientation, reconnaissance, antenna gain and pattern measurement and otherapplications. This series of horn antennas has the characteristics of high gain, Iow VswR, and lightappearance.

Note : Connectors can be matched according to your needs, please contact RF Miso

  • Table list view
  • Grid view
  • Model Frequency,min.(GHz) Frequency,max.(GHz) Gain,Typ.(dBi) Polarization 3dB Beamwidth, E-Plane(Deg.) 3dB Beamwidth,H-Plane(Deg.) VSWR,Typ. Connector Port Isolation, Typ (dB) AR, Typ. (dB) LINK
    RM-DCPHA076-10 0.7 6 10 Dual Circular / / <2 SMA-Female 45 <1.5
    circle
    Model Frequency,min.(GHz) Frequency,max.(GHz) Gain,Typ.(dBi) Polarization 3dB Beamwidth, E-Plane(Deg.) 3dB Beamwidth,H-Plane(Deg.) VSWR,Typ. Connector Port Isolation, Typ (dB) AR, Typ. (dB) LINK
    RM-DCPHA1218-10 12 18 10 Dual Circular 37~53 37-53 1.4 SMA-Female 25 <1.3
    circle
    Model Frequency,min.(GHz) Frequency,max.(GHz) Gain,Typ.(dBi) Polarization 3dB Beamwidth, E-Plane(Deg.) 3dB Beamwidth,H-Plane(Deg.) VSWR,Typ. Connector Port Isolation, Typ (dB) AR, Typ. (dB) LINK
    RM-DCPHA4516-10 4.5 16 10 Dual Circular / / <1.5 SMA-Female 45 <1
    circle
    Model Frequency,min.(GHz) Frequency,max.(GHz) Gain,Typ.(dBi) Polarization 3dB Beamwidth, E-Plane(Deg.) 3dB Beamwidth,H-Plane(Deg.) VSWR,Typ. Connector Port Isolation, Typ (dB) AR, Typ. (dB) LINK
    RM-DCPHA15-10 1 5 10 Dual Circular / / 1.5 SMA-Female 45 <1
    circle
    Model Frequency,min.(GHz) Frequency,max.(GHz) Gain,Typ.(dBi) Polarization 3dB Beamwidth, E-Plane(Deg.) 3dB Beamwidth,H-Plane(Deg.) VSWR,Typ. Connector Port Isolation, Typ (dB) AR, Typ. (dB) LINK
    RM-DCPHA26-10 2 6 10 Dual Circular Polarized / / / SMA-Female / <2
    circle
    Model Frequency,min.(GHz) Frequency,max.(GHz) Gain,Typ.(dBi) Polarization 3dB Beamwidth, E-Plane(Deg.) 3dB Beamwidth,H-Plane(Deg.) VSWR,Typ. Connector Port Isolation, Typ (dB) AR, Typ. (dB) LINK
    RM-DCPHA1826-15 18 26.5 15 RHCP / / <1.5 SMA-Female 30 <1.5
    circle
    Model Frequency,min.(GHz) Frequency,max.(GHz) Gain,Typ.(dBi) Polarization 3dB Beamwidth, E-Plane(Deg.) 3dB Beamwidth,H-Plane(Deg.) VSWR,Typ. Connector Port Isolation, Typ (dB) AR, Typ. (dB) LINK
    RM-DCPHA1840-12 18 40 12 Dual Circular / / ≤2 2.92-Female 15 1.5
    circle
    Model Frequency,min.(GHz) Frequency,max.(GHz) Gain,Typ.(dBi) Polarization 3dB Beamwidth, E-Plane(Deg.) 3dB Beamwidth,H-Plane(Deg.) VSWR,Typ. Connector Port Isolation, Typ (dB) AR, Typ. (dB) LINK
    RM-DCWPA2731-10 27 31 10 Dual Circular 59 58 <1.3 SMA-F / <0.6
    circle
    Model Frequency,min.(GHz) Frequency,max.(GHz) Gain,Typ.(dBi) Polarization 3dB Beamwidth, E-Plane(Deg.) 3dB Beamwidth,H-Plane(Deg.) VSWR,Typ. Connector Port Isolation, Typ (dB) AR, Typ. (dB) LINK
    RM-DCWPA1722-10 17 22 10 Dual Circular 61 61 <1.3 SMA-F 27 <0.75
    circle
    Model Frequency,min.(GHz) Frequency,max.(GHz) Gain,Typ.(dBi) Polarization 3dB Beamwidth, E-Plane(Deg.) 3dB Beamwidth,H-Plane(Deg.) VSWR,Typ. Connector Port Isolation, Typ (dB) AR, Typ. (dB) LINK
    RM-DCPHA212-7 2 12 7 Dual Circular / / / SMA-Female / 0.5-1.6
    circle
    Model Frequency,min.(GHz) Frequency,max.(GHz) Gain,Typ.(dBi) Polarization 3dB Beamwidth, E-Plane(Deg.) 3dB Beamwidth,H-Plane(Deg.) VSWR,Typ. Connector Port Isolation, Typ (dB) AR, Typ. (dB) LINK
    RM-DCPHA105145-20 10.5 14.5 20 Dual-Circular-polarized / / <1.5 / >30 <0.98
    circle
