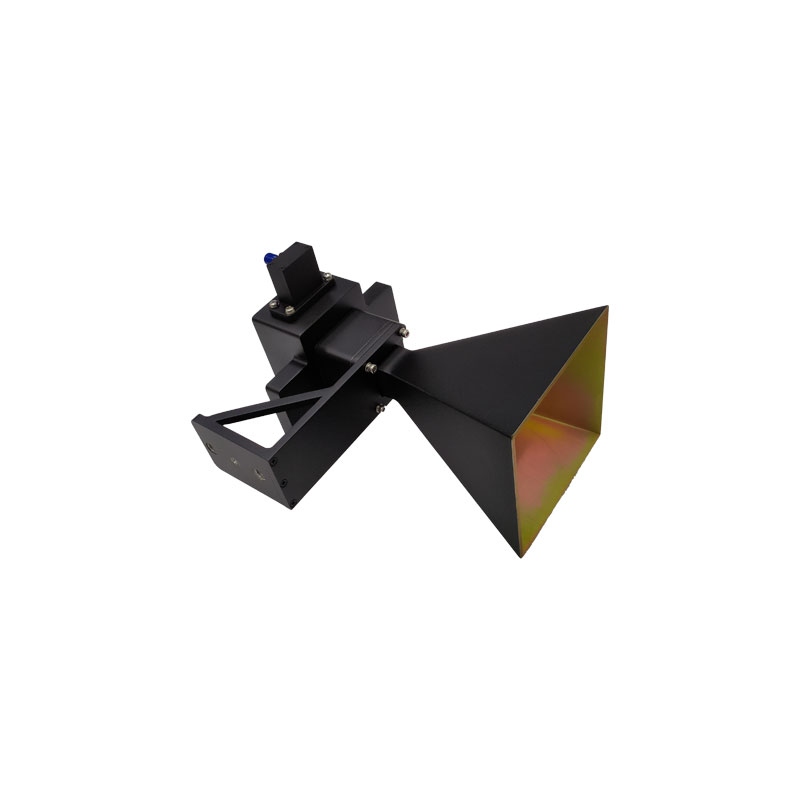

Broadband Dual-Polarized Horn Antennas

Available from 1 to 500GHz
RF Miso Standard gain horn antennas adopt linear polarization, providing an efficient andeconomical method for measurement These horn antennas can be widely used in EMIdetection, orientation, reconnaissance, antenna gain and pattern measurement and otherapplications. This series of horn antennas has the characteristics of high gain, Iow VswR, and lightappearance.

Note : Connectors can be matched according to your needs, please contact RF Miso

  • Table list view
  • Grid view
  • Model Frequency,min.(GHz) Frequency,max.(GHz) Gain,Typ.(dBi) Polarization 3dB Beamwidth, E-Plane(Deg.) 3dB Beamwidth,H-Plane(Deg.) VSWR,Typ. Cross Pol. Isolation,Typ. (dB) Connector Port Isolation, Typ (dB) LINK
    RM-BDPHA023-10 0.2 3 10 Dual Linear 46~259 36~132 1.5:1 50 N-Female 40
    circle
    Model Frequency,min.(GHz) Frequency,max.(GHz) Gain,Typ.(dBi) Polarization 3dB Beamwidth, E-Plane(Deg.) 3dB Beamwidth,H-Plane(Deg.) VSWR,Typ. Cross Pol. Isolation,Typ. (dB) Connector Port Isolation, Typ (dB) LINK
    RM-BDPHA1840-18 18 40 18 Dual Linear 15.5-22.5 20.7-32 1.5 30 2.92mm-Female 30
    circle
    Model Frequency,min.(GHz) Frequency,max.(GHz) Gain,Typ.(dBi) Polarization 3dB Beamwidth, E-Plane(Deg.) 3dB Beamwidth,H-Plane(Deg.) VSWR,Typ. Cross Pol. Isolation,Typ. (dB) Connector Port Isolation, Typ (dB) LINK
    RM-DPHA218-15O 2 18 15 Dual Linear / / 1.4:1 / SMA-Female /
    circle
    Model Frequency,min.(GHz) Frequency,max.(GHz) Gain,Typ.(dBi) Polarization 3dB Beamwidth, E-Plane(Deg.) 3dB Beamwidth,H-Plane(Deg.) VSWR,Typ. Cross Pol. Isolation,Typ. (dB) Connector Port Isolation, Typ (dB) LINK
    RM-BDPHA046-11 0.4 6 11 Dual Linear / / 1.5 / SMA-Female >30
    circle
    Model Frequency,min.(GHz) Frequency,max.(GHz) Gain,Typ.(dBi) Polarization 3dB Beamwidth, E-Plane(Deg.) 3dB Beamwidth,H-Plane(Deg.) VSWR,Typ. Cross Pol. Isolation,Typ. (dB) Connector Port Isolation, Typ (dB) LINK
    RM-BDPHA046-10 0.4 6 10 Dual Linear / / 1.35:1 / SMA-Female 55
    circle
    Model Frequency,min.(GHz) Frequency,max.(GHz) Gain,Typ.(dBi) Polarization 3dB Beamwidth, E-Plane(Deg.) 3dB Beamwidth,H-Plane(Deg.) VSWR,Typ. Cross Pol. Isolation,Typ. (dB) Connector Port Isolation, Typ (dB) LINK
    RM-BDPHA212-7 2 12 7 Dual Linear / / 1.5 / SMA-Female /
    circle
    Model Frequency,min.(GHz) Frequency,max.(GHz) Gain,Typ.(dBi) Polarization 3dB Beamwidth, E-Plane(Deg.) 3dB Beamwidth,H-Plane(Deg.) VSWR,Typ. Cross Pol. Isolation,Typ. (dB) Connector Port Isolation, Typ (dB) LINK
    RM-DPHA2030-15 20 30 15 Dual Linear / / 1.3 60 SMA-Female 70
    circle
    Model Frequency,min.(GHz) Frequency,max.(GHz) Gain,Typ.(dBi) Polarization 3dB Beamwidth, E-Plane(Deg.) 3dB Beamwidth,H-Plane(Deg.) VSWR,Typ. Cross Pol. Isolation,Typ. (dB) Connector Port Isolation, Typ (dB) LINK
    RM-BDPHA412-10 4 12.5 10 Dual Linear / / 1.5:1 / SMA-Female /
    circle
    Model Frequency,min.(GHz) Frequency,max.(GHz) Gain,Typ.(dBi) Polarization 3dB Beamwidth, E-Plane(Deg.) 3dB Beamwidth,H-Plane(Deg.) VSWR,Typ. Cross Pol. Isolation,Typ. (dB) Connector Port Isolation, Typ (dB) LINK
    RM-BDPHA6245-12 6 24 12 Dual Linear / / 1.3:1 / SMA-Female /
    circle
    Model Frequency,min.(GHz) Frequency,max.(GHz) Gain,Typ.(dBi) Polarization 3dB Beamwidth, E-Plane(Deg.) 3dB Beamwidth,H-Plane(Deg.) VSWR,Typ. Cross Pol. Isolation,Typ. (dB) Connector Port Isolation, Typ (dB) LINK
    RM-BDPHA9395-22 93 95 22 Dual Linear / / 1.3 60 WR10 67
    circle
    Model Frequency,min.(GHz) Frequency,max.(GHz) Gain,Typ.(dBi) Polarization 3dB Beamwidth, E-Plane(Deg.) 3dB Beamwidth,H-Plane(Deg.) VSWR,Typ. Cross Pol. Isolation,Typ. (dB) Connector Port Isolation, Typ (dB) LINK
    RM-BDPHA4244-21 42 44 21 Dual Linear / / 1.2 60 2.4mm-F 70
    circle
    Model Frequency,min.(GHz) Frequency,max.(GHz) Gain,Typ.(dBi) Polarization 3dB Beamwidth, E-Plane(Deg.) 3dB Beamwidth,H-Plane(Deg.) VSWR,Typ. Cross Pol. Isolation,Typ. (dB) Connector Port Isolation, Typ (dB) LINK
    RM-BDPHA1854-15 18 54 15 Dual Linear / / 1.5 40 2.4mm-F 40
    circle
    12 Next > >> Page 1 / 2
