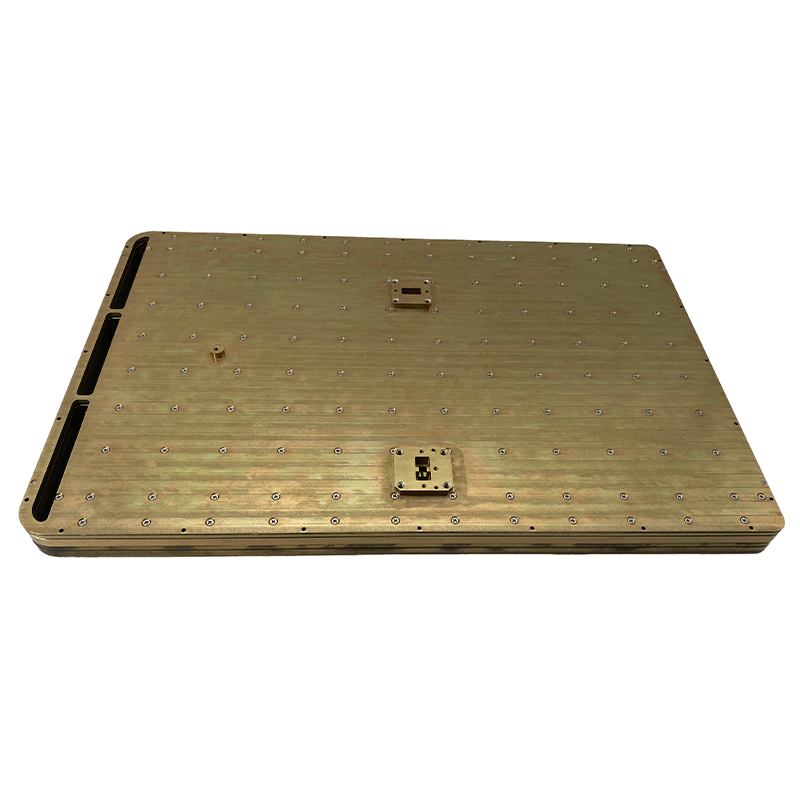

Array Antennas

  • Planar Spiral Antenna 3 dBi Typ. Gain, 0.75-6 GHz Frequency Range RM-PSA0756-3L

    Planar Spiral Antenna 3 dBi Typ. Gain, 0.75-6 GHz Frequency Range RM-PSA0756-3L

    RF MISO’s Model RM-PSA0756-3L is a left-handed circularly planar spiral antenna that operates from 0.75-6GHz. The antenna offers a gain 3 dBi Typ. and low VSWR 1.5:1 with N-Female connector. It designed for EMC, reconnaissance, orientation, remote sensing, and flush mounted vehicle applications. These helical antennas can be used as separate antenna components or as feeders for reflector satellite antennas.

    inquirydetail
  • RM-PA17731B

    RM-PA17731B

    Specifications           RM-PA17731B Parameters Indicator requirements Unit Frequency Range Transmission:27.5-31.0 Reception:17.7-21.2 GHz Polarization Circular(orthogona1-po1) Gain Transmission : ≥ 40.0dBi+20log(f/29.25GHz) Receiving : ≥ 36.5dBi+20log(f/19.45GHz) dB Axle ratio ≤1.5 VSWR ≤1.75 Port isolation ≥55 dB Antenna Surface Thickness 20-25 mm Weight ≤ 3.0 Kg Surface Size 430×290(±5) mm
    inquirydetail
  • Planar Antenna 30dBi Typ. Gain, 10-14.5GHz Frequency Range RM-PA10145-30

    Planar Antenna 30dBi Typ. Gain, 10-14.5GHz Frequency Range RM-PA10145-30

    l Worldwide satellite coverage (X,Ku,Ka and Q/V bands)

    l Multi-frequency and multi-polarization common aperture

    l High aperture efficiency

    l High isolation and low cross polarization

    l Low profile and lightweight

    inquirydetail
  • RM-PA107145A

    RM-PA107145A

    Specifications RM-PA107145A Parameters Indicator requirements Unit Frequency Range Transmission:13.75-14.5 Reception:10.7-12.75 GHz Polarization Linear Gain Transmission : ≥32dBi+20LOG (f/14.5) Receiving : ≥31dBi+20LOG (f/12.75) dB First Side-lobe(full band) ≤ -14 dB Cross Polarization ≥35(Axial) dB VSWR ≤1.75 Port isolation ≥55(without include blocking filter) dB Antenna Surface Thickness 15-25(different process...
    inquirydetail
  • RM-PA107145B

    RM-PA107145B

    Specifications RM-PA107145B Parameters Indicator requirements Unit Frequency Range Transmission:13.75-14.5 Reception:10.7-12.75 GHz Polarization dual-polarization 0.6m array Gain Transmission: ≥ 37.5dBi+20log（f/14.25） Receiving: ≥ 36.5dBi+20log（f/12.5） dB 0.45m array Gain Transmission: ≥ 31.5dBi+20log (f/14.25) Receiving: ≥ 30.5dBi+20log (f/12.5) dB First Sidelobe ＜ -14 dB Cross Polarization ＞33(Axial) dB VSWR ＜ 1....
    inquirydetail
  • 71-76GHz,81-86GHz Dual Band E-Band Dual Polarized Panel Antenna RM-PA7087-43

    71-76GHz,81-86GHz Dual Band E-Band Dual Polarized Panel Antenna RM-PA7087-43

    Specifications RM-PA7087-43 Parameters Indicator requirements Unit Frequency Range 71-76 81-86 GHz Polarization vertical and horizontal polarization Gain ≥43 In-band fluctuation:0.7dB(5GHz) dB First Sidelobe ≤-13 dB Cross Polarization ≥40 dB VSWR ≤1.8:1 Waveguide WR12 Material Al Weight ≤2.5 Kg Size(L*W*H) 450*370*16 (±5) mm
    inquirydetail
  • Planar Antenna 10.75-14.5GHz Frequency Range, 32 dBi Typ. Gain RM-PA1075145-32

    Planar Antenna 10.75-14.5GHz Frequency Range, 32 dBi Typ. Gain RM-PA1075145-32

    Specifications RM-PA1075145-32 Parameter Specification Unit Frequency Range 10.75-14.5 GHz Gain 32 Typ. dBi VSWR           ≤1.8 Polarization  Dual Linear  Cross Polarization Isolation ＞30 dB Isolation ＞55 dB 3dB Beamwidth E plane 4.2-5 ° H plane 2.8-3.4 Side lobe ≤-14 Finishing Color conductive oxidation Interface WR75/WR62 Size 460*304*32.2(L*W*H) mm Radome yes
    inquirydetail
  • Slotted Waveguide Antenna 22dBi Typ. Gain, 9-10GHz Frequency Range Edit RM-SWA910-22

    Slotted Waveguide Antenna 22dBi Typ. Gain, 9-10GHz Frequency Range Edit RM-SWA910-22

    Ideal for Communication and Radar

    Low VSWR

    Small Size

    inquirydetail
